4710-00-173-6818 (4710001736818) NSN Information
| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|

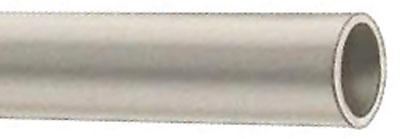

 | 4710-00-173-6818 | 4710 | 001736818 | Tube, Metallic | 31979 |
4710-00-173-6818 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAGR | Cross-Sectional Shape Style | Plain round |
| AAGT | Wall Thickness | 0.065 inches minimum |
| AAGZ | First End Style | Plain |
| AAJH | Welding Method | Electric resistance |
| ABMZ | Diameter | 2.500 inches minimum |
| CQBB | Second End Relationship With First End | Identical |
| CRXX | Measuring Method and Length | 204.000 inches minimum specific and 240.000 inches maximum specific |
| HEAT | Heat Treatment | Annealed |
| MATT | Material | Steel comp 304 |
| MDCL | Material Document and Classification | Astm A249, grade T+304 assn std single material response or astm A269, grade T+304, carbon range of 0.06 to 0.08 percent assn std single material response |
4710-00-173-6818 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| A249TP304 | 81346 | A | 1 | 5 | 93 | ||||
| A269TP304 | 81346 | A | 1 | 3 | 93 |
4710-00-173-6818 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| A249TP304 | 81346 | American Society for Testing And | F | A | |
| A269TP304 | 81346 | American Society for Testing And | F | A |
4710-00-173-6818 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 14-FEB-1973 | N | 31979 |
4710-00-173-6818 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N |
4710-00-173-6818 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| G930 |
4710-00-173-6818 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
