5945-01-294-5685 (5945012945685) NSN Information

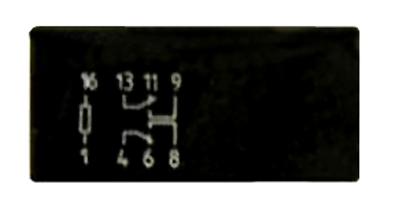

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5945-01-294-5685 | 5945 | 012945685 | Relay, Electromagnetic | 32512 |
5945-01-294-5685 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 0.781 inches nominal |
| ABKW | Overall Height | 0.422 inches nominal |
| ABMK | Overall Width | 0.406 inches nominal |
| AGAV | End Item Identification | Loran C |
| AKDX | Winding Quantity | 1 |
| APCN | Coil Quantity | 1 |
| APNP | Duty Type | Continuous |
| AXHR | Mounting Facility Type and Quantity | 1 plug-in terminal single mounting facility |
| CRNG | Nonpile-up Main Contact Arrangement | 2 pole, double throw, one position momentary |
| CWAB | Main Contact Maximum Voltage Rating in Volts | 24.0 ac |
| TTQY | Terminal Type and Quantity | 8 pin all functions |
5945-01-294-5685 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| MT2-24VC93403 | 08125 | A | 2 | 3 | ZZ | ||||
| MT2-24VC93403 | 15238 | F | 9 | 5 | 48 |
5945-01-294-5685 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| MT2-24VC93403 | 15238 | ITT Semiconductors | A | F | |
| MT2-24VC93403 | 08125 | U S Dept of Transportation | A | A |
5945-01-294-5685 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | B | 3 | 17-FEB-1989 | N | 32512 |
5945-01-294-5685 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| B | N | N |
5945-01-294-5685 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
