5945-01-294-5677 (5945012945677) NSN Information

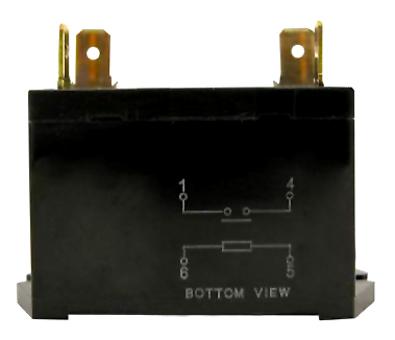

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5945-01-294-5677 | 5945 | 012945677 | Relay, Electromagnetic | 32512 |
5945-01-294-5677 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 1.969 inches nominal |
| ABKW | Overall Height | 1.409 inches nominal |
| ABMK | Overall Width | 1.299 inches nominal |
| ADZC | Environmental Protection | Dustproof |
| AGAV | End Item Identification | Engine generator(eg) |
| AKDX | Winding Quantity | 1 |
| APCN | Coil Quantity | 1 |
| APNA | Winding DC Resistance Rating | 300.0 ohms nominal single winding |
| APNP | Duty Type | Continuous |
| AXHR | Mounting Facility Type and Quantity | 4 plug-in terminal single mounting facility |
| CRNG | Nonpile-up Main Contact Arrangement | 1 pole, double throw, double break/double make, one position momentary |
| CSXF | Operating Voltage Rating and Type at Specified Temp | 24.0 volts dc 25 deg celsius single winding |
| CTDL | Main Contact Load Current Rating at Maximum Rated Voltage | 30.0 amperes ac resistive load |
| CWAB | Main Contact Maximum Voltage Rating in Volts | 277.0 ac and 250.0 ac and 125.0 ac |
| TTQY | Terminal Type and Quantity | 4 quick disconnect, female all functions |
5945-01-294-5677 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 18500-260 | 78308 | A | 9 | 5 | 48 | ||||
| 24832000 | 78308 | A | 2 | 3 | 48 |
5945-01-294-5677 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 18500-260 | 78308 | Simplex Inc. | A | A | |
| 24832000 | 78308 | Simplex Inc. | A | A |
5945-01-294-5677 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | A | 7 | 17-FEB-1989 | N | 8536490075 | 32512 |
5945-01-294-5677 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5945-01-294-5677 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | N |
5945-01-294-5677 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5945-01-294-5677 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5945-01-294-5677 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
