FSCs>FSG 53 - Rivets, Fastening Devices & Materials>FSC 5320 Rivets>5320-01-034-1885

5320-01-034-1885 (HR3242-4-03, NAS9305BNS-4-03, OCHP-B04-03) Data

5320-01-034-1885 (5320010341885) NSN Information

PhotoNSNFSCNIINItem NameINC

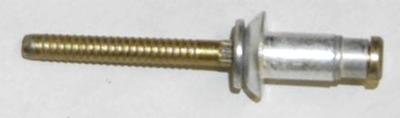

5320-01-034-1885 Photo
5320-01-034-18855320010341885Rivet, Blind00864

5320-01-034-1885 Features

MRCParameterCharacteristics
AASBFastener Length0.267 inches minimum and 0.287 inches maximum
AASKHead StyleFlush (flat) countersunk (included angle - less than 135 deg W or W/O chamfer)
AAZEShank Diameter0.140 inches minimum and 0.143 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.211 inches minimum
ABAFExpansion DeviceSerrated stem-type W
ANEEGrip Length0.126 inches minimum and 0.187 inches maximum
CRSQCountersink Angle100.0 degrees nominal
FEATSpecial FeaturesNs" letters after the material code "b" indicate no preference to lock type (may be visible or internal). rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.
MATTMaterialAluminum alloy 5056 body
MATTMaterialSteel comp 8740 stem
MDCLMaterial Document and ClassificationAms 6322 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-A-430 fed spec single material response body
SFTTSurface TreatmentCadmium stem
SFTTSurface TreatmentChromate body
STDCSurface Treatment Document and ClassificationMIL-C-5541 mil spec single treatment response body
STDCSurface Treatment Document and ClassificationQQ-P-416, ty 2, cl 3 fed spec single treatment response stem

5320-01-034-1885 Manufacturing Part Numbers (SKUs)

MFG SKUCAGESTATUSISCRNVCRNCCSADCDACHCCRNAAC
5320PL15202969009HA96 WP
AF3242-4-353551A95 KZ
CR3242-4-0311815A25 ZZ
CR3242-4-3F7652R95 ZF
HC3242-4-0317446A93 ZZ
HR3242-4-030HDW7A95 ZZ
M7885/7-4-0381349A95 KZ
MIL-R-7885/781349A95 KZ
NAS9305BNS-4-032N935A25 ZG
NAS9305BNS-4-0353551A25 9Z
NAS9305BNS-4-0380205A23 ZZ
OCHP-B04-030HDW7A95 KZ
OCHP-B04-0317446A95 KZ

5320-01-034-1885 Manufacturer

MFG SKUCAGEManufacturerTypeStatusRole
AF3242-4-353551Allfast Fastening Systems Inc.AA
NAS9305BNS-4-0353551Allfast Fastening Systems Inc.AA
NAS9305BNS-4-032N935BE Aerospace Inc.FA
HC3242-4-0317446Huck International Inc.AA
HR3242-4-030HDW7Huck International Inc.AA
OCHP-B04-030HDW7Huck International Inc.AA
OCHP-B04-0317446Huck International Inc.AA
5320PL15202969009HInspektorat Wsparcia SIL ZbrojnychHA
M7885/7-4-0381349Military SpecificationsMA
MIL-R-7885/781349Military SpecificationsMA
NAS9305BNS-4-0380205National Aerospace StandardsCA
CR3242-4-3F7652Satair Hardware S.A.S.ER
CR3242-4-0311815SPS Technologies LLCAA

5320-01-034-1885 FLIS Identification

PMICADPE CODECRITL CODEDEMIL CODEDEMIL INTGNIIN ASGMTESDHMICENACSCHEDULE_BINC
UXA120-JAN-1977N761610300000864

5320-01-034-1885 FLIS Management

MOEREC REP CODEMGMT CTLUSCPHRASE CODEPHRASE STATEMENT
DSN-------I
DFNSF9SX-VF
DAZT2200X-A
DMZ15B2---M
DN9B-----N
GP-------C

5320-01-034-1885 Demilitarization Codes & Management

DMLPMICHMICADPECCriticalityESDC
ANF

5320-01-034-1885 Miscellaneous Management

MOE (S_A)SOSAACQUPUISLCCIICRCMCCSVC
DASMSD1HD0UZT2200X-A
DASMSD1HD0UZT2200X-C
DASMSD1HD0UZT2200X-F
DASMSD1HD0UZT2200X-I
DASMSD1HD0UZT2200X-M
DASMSD1HD0UZT2200X-N
DFSMSD1HD0UNSF9SX-VA
DFSMSD1HD0UNSF9SX-VC
DFSMSD1HD0UNSF9SX-VF
DFSMSD1HD0UNSF9SX-VI
DFSMSD1HD0UNSF9SX-VM
DFSMSD1HD0UNSF9SX-VN
DMSMSD1HD0UZ15B2---A
DMSMSD1HD0UZ15B2---C
DMSMSD1HD0UZ15B2---F
DMSMSD1HD0UZ15B2---I
DMSMSD1HD0UZ15B2---M
DMSMSD1HD0UZ15B2---N
DNSMSD1HD0U9B-----A
DNSMSD1HD0U9B-----C
DNSMSD1HD0U9B-----F
DNSMSD1HD0U9B-----I
DNSMSD1HD0U9B-----M
DNSMSD1HD0U9B-----N
DSSMSD1HD0UN-------A
DSSMSD1HD0UN-------C
DSSMSD1HD0UN-------F
DSSMSD1HD0UN-------I
DSSMSD1HD0UN-------M
DSSMSD1HD0UN-------N
GPSMSD1HD0U-------A
GPSMSD1HD0U-------C
GPSMSD1HD0U-------F
GPSMSD1HD0U-------I
GPSMSD1HD0U-------M
GPSMSD1HD0U-------N

5320-01-034-1885 Component / End Item

WPN SYS IDWPN SYS SVCWEAPON SYSTEM
02AHelicopter, Iroquois UH-1
02FAircraft, Phantom F-4
04FAircraft, Stratofortress B-52
05FAircraft, Stratolifter C/KC-135
06FAircraft, Hercules C-130
09FAircraft, Delta Dart F-106
11FAircraft, Galaxy C-5
19FAircraft, Eagle F-15
22FHelicopter, Iroquois HH/UH-1
24FAircraft, Thunderbolt Ii, A-10
25FAircraft, Awacs, E-3A
26FAircraft, F-16
40NHelicopter, sea Knight H-46
41FAircraft, T-37
41NHelicopter, CH-53 D/E
42FAircraft, T-38
44NHelicopter, Lamps Mark III, SH-60B
45NAircraft, Prowler EA-6B
47NHelicopter, Cobra/Attack, AH-1J
48NHelicopter, Utility/Search and Recovery UH-1N
53NUH-1Y Helicopter
55NAircraft, Harrier AV-8B
56FAircraft, B-1B
75FHelicopter, HH-60
78FCommunications Program, Combat Theater (Tri-Tac) 478I
ATFAircraft, Sof (AC-130H, MC-130H, EC-130E, HC-130, MC-130W)
BRFEngine, Aircraft, TF39-GE-1 (C-5A)
C4NHelicopter, H1 All Versions
CFNHelicopter, MH-53E
CXNAircraft, Osprey V-22A, Marine Corps
DTFAircraft, Airlifter C-17A
PAFU-2 Airframe
PCFU-2 Support Equipment
QEFHelo, TH-1H Huey Ii
VHAHelicopter Observation (Ahip), OH-58D
YLNHelicopter, Seahawk, H-60

5320-01-034-1885 Non-consumable Item Support

MOE RULENIMSCDSOR
A919
N9BZ
MC47
FXGI
C918
G860
G880
YD01
YJ01
YW01
ZA01
ZB01
ZC01
ZE01
ZF01
ZG01
ZH01
ZK01
ZN01
ZP01
ZR01
ZS01
ZT01
ZU01
ZW01
VJ01
VK01
WG01
WL01
WP01
WZ01
YA01
YB01
YC01

5320-01-034-1885 Management Control Air Force

FUNDBUDGETMMACPVC
SF9SXV

5320-01-034-1885 Management Control Army

MATCAT 1MATCAT 2MATCAT 3MATCAT 4 5ARC
T2200X

5320-01-034-1885 Management Control Marine Corps

SACCECMECMICOTCPCC
15B2

5320-01-034-1885 Management Control Navy

COGSMICIRRCSMCC
9B

5320-01-034-1885 Freight

NMFCNMFC SUBUFCHMCLTLLCLWCCTCCSHCADCACCASHNMF DESC
106510X54760U576Z9ABZ

5320-01-034-1885 FLIS Packaging 1

PICA SICATOSICQMOPCLNG DRYINGPRES MATWRAP MATPKG CATPKG DESIGN ACTYCUSH DUN
PAAA101000027A000

5320-01-034-1885 FLIS Packaging 2

THKUNIT CONTPKG DATA SOURCEINTER CONTUCLSPC MKGLVL ALVL BLVL C
0A1P00EQ

5320-01-034-1885 FLIS Packaging 3

UNIT PACK WEIGHTUNIT PACK SIZEUNIT PACK CUBECONT NSNOPIUNPKG ITEM DIMUNPKG ITEM WEIGHTSPI DATESPI NOSPI REVSUPPL INSTR
0000.40000.009O
