5320-01-033-9663 (HR3243-4-05, AF3243-4-05, HC3243-4-5) Data

5320-01-033-9663 (5320010339663) NSN Information

PhotoNSNFSCNIINItem NameINC

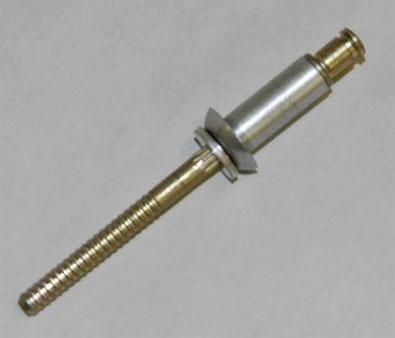

5320-01-033-9663 Photo
5320-01-033-96635320010339663Rivet, Blind00864

5320-01-033-9663 Features

MRCParameterCharacteristics
AASBFastener Length0.393 inches minimum and 0.413 inches maximum
AASKHead StyleUniversal
AASUHead Height0.054 inches minimum and 0.064 inches maximum
AAZEShank Diameter0.140 inches minimum and 0.143 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.238 inches minimum and 0.262 inches maximum
ABAFExpansion DeviceSerrated stem-type W
ANEEGrip Length0.251 inches minimum and 0.312 inches maximum
FEATSpecial FeaturesNs" letters after the material code "b" indicate no preference to lock type (may be visible or internal). rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.
MATTMaterialAluminum alloy 5056 body
MATTMaterialSteel comp 8740 stem
MDCLMaterial Document and ClassificationAms 6322 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-A-430 fed spec single material response body
SFTTSurface TreatmentCadmium stem
SFTTSurface TreatmentChromate body
STDCSurface Treatment Document and ClassificationMIL-C-5541 mil spec single treatment response body
STDCSurface Treatment Document and ClassificationQQ-P-416, ty 2, cl 3 fed spec single treatment response stem

5320-01-033-9663 Manufacturing Part Numbers (SKUs)

MFG SKUCAGESTATUSISCRNVCRNCCSADCDACHCCRNAAC
5320PL15266989009HA96 WP
AF3243-4-0553551A25 ZZ
AF3243-4-553551A95 ZZ
BACR15FR4B581205A25 9Z
CR3243-4-0511815A23 9Z
CR3243-4-506950A25 ZZ
CR3243-4-511815A25 KZ
CR3243-4-592215A95 KZ
CR3243-4-5A0311A25 ZR
CR3243-4-5C4293A25 ZG
CR3243-4-5F7652R95 ZF
HC3243-4-517446A23 ZZ
HR3243-4-050HDW7A95 ZZ
M7885/6-4-0581349A95 KZ
MIL-R-7885/681349A95 KZ
NAS9304BNS-4-0580205A23 ZZ

5320-01-033-9663 Manufacturer

MFG SKUCAGEManufacturerTypeStatusRole
CR3243-4-5C4293Alcoa Fastening Systems FairchildEA
CR3243-4-506950Alcoa Global Fasteners Inc.AA
CR3243-4-592215Alcoa Global Fasteners Inc.AA
AF3243-4-0553551Allfast Fastening Systems Inc.AA
AF3243-4-553551Allfast Fastening Systems Inc.AA
HC3243-4-517446Huck International Inc.AA
HR3243-4-050HDW7Huck International Inc.AA
5320PL15266989009HInspektorat Wsparcia SIL ZbrojnychHA
M7885/6-4-0581349Military SpecificationsMA
MIL-R-7885/681349Military SpecificationsMA
NAS9304BNS-4-0580205National Aerospace StandardsCA
CR3243-4-5F7652Satair Hardware S.A.S.ER
CR3243-4-0511815SPS Technologies LLCAA
CR3243-4-511815SPS Technologies LLCAA
CR3243-4-5A0311Tecno Trade SRLFA
BACR15FR4B581205The Boeing CompanyAA

5320-01-033-9663 Replaces the Following Cancelled NSN

Cancelled NSNCancelled NIIN
5320-01-421-4554014214554

5320-01-033-9663 FLIS Identification

PMICADPE CODECRITL CODEDEMIL CODEDEMIL INTGNIIN ASGMTESDHMICENACSCHEDULE_BINC
UXA115-JAN-1977N761610300000864

5320-01-033-9663 FLIS Management

MOEREC REP CODEMGMT CTLUSCPHRASE CODEPHRASE STATEMENT
DSN-------I
DFNSF9SX-NF
DAZT2200X-A
DMZ15B2---M
DN9B-----N
GP-------C

5320-01-033-9663 Demilitarization Codes & Management

DMLPMICHMICADPECCriticalityESDC
ANF

5320-01-033-9663 Miscellaneous Management

MOE (S_A)SOSAACQUPUISLCCIICRCMCCSVC
DASMSD1HD0UZT2200X-A
DASMSD1HD0UZT2200X-C
DASMSD1HD0UZT2200X-F
DASMSD1HD0UZT2200X-I
DASMSD1HD0UZT2200X-M
DASMSD1HD0UZT2200X-N
DFSMSD1HD0UNSF9SX-NA
DFSMSD1HD0UNSF9SX-NC
DFSMSD1HD0UNSF9SX-NF
DFSMSD1HD0UNSF9SX-NI
DFSMSD1HD0UNSF9SX-NM
DFSMSD1HD0UNSF9SX-NN
DMSMSD1HD0UZ15B2---A
DMSMSD1HD0UZ15B2---C
DMSMSD1HD0UZ15B2---F
DMSMSD1HD0UZ15B2---I
DMSMSD1HD0UZ15B2---M
DMSMSD1HD0UZ15B2---N
DNSMSD1HD0U9B-----A
DNSMSD1HD0U9B-----C
DNSMSD1HD0U9B-----F
DNSMSD1HD0U9B-----I
DNSMSD1HD0U9B-----M
DNSMSD1HD0U9B-----N
DSSMSD1HD0UN-------A
DSSMSD1HD0UN-------C
DSSMSD1HD0UN-------F
DSSMSD1HD0UN-------I
DSSMSD1HD0UN-------M
DSSMSD1HD0UN-------N
GPSMSD1HD0U-------A
GPSMSD1HD0U-------C
GPSMSD1HD0U-------F
GPSMSD1HD0U-------I
GPSMSD1HD0U-------M
GPSMSD1HD0U-------N

5320-01-033-9663 Component / End Item

WPN SYS IDWPN SYS SVCWEAPON SYSTEM
02AHelicopter, Iroquois UH-1
02FAircraft, Phantom F-4
04FAircraft, Stratofortress B-52
05FAircraft, Stratolifter C/KC-135
06FAircraft, Hercules C-130
09FAircraft, Delta Dart F-106
11FAircraft, Galaxy C-5
19FAircraft, Eagle F-15
22FHelicopter, Iroquois HH/UH-1
24FAircraft, Thunderbolt Ii, A-10
25FAircraft, Awacs, E-3A
26FAircraft, F-16
32AHelicopter, Kiowa OH-58 a & C
40NHelicopter, sea Knight H-46
41FAircraft, T-37
42FAircraft, T-38
44NHelicopter, Lamps Mark III, SH-60B
48NHelicopter, Utility/Search and Recovery UH-1N
53NUH-1Y Helicopter
55NAircraft, Harrier AV-8B
56FAircraft, B-1B
ATFAircraft, Sof (AC-130H, MC-130H, EC-130E, HC-130, MC-130W)
C4NHelicopter, H1 All Versions
CFNHelicopter, MH-53E
CPNHelicopter, Advance Attack, AH-1W
CTFAircraft, Osprey CV-22B
CXNAircraft, Osprey V-22A, Marine Corps
DTFAircraft, Airlifter C-17A
QEFHelo, TH-1H Huey Ii
VHAHelicopter Observation (Ahip), OH-58D
YYAAircraft MH-47E Special Operations Aircraft

5320-01-033-9663 Non-consumable Item Support

MOE RULENIMSCDSOR
A919
N9BZ
MC47
FXGI
BGX1
C918
G880
YD01
YJ01
YW01
ZA01
ZB01
ZC01
ZE01
ZF01
ZG01
ZH01
ZK01
ZN01
ZP01
ZR01
ZS01
ZT01
ZU01
ZW01
ZX01
VJ01
VK01
WB01
WG01
WL01
WP01
WZ01
YA01
YB01
YC01

5320-01-033-9663 Management Control Air Force

FUNDBUDGETMMACPVC
SF9SXN

5320-01-033-9663 Management Control Army

MATCAT 1MATCAT 2MATCAT 3MATCAT 4 5ARC
T2200X

5320-01-033-9663 Management Control Marine Corps

SACCECMECMICOTCPCC
15B2

5320-01-033-9663 Management Control Navy

COGSMICIRRCSMCC
9B

5320-01-033-9663 Freight

NMFCNMFC SUBUFCHMCLTLLCLWCCTCCSHCADCACCASHNMF DESC
106510X54760U576Z9AVZ

5320-01-033-9663 FLIS Packaging 1

PICA SICATOSICQMOPCLNG DRYINGPRES MATWRAP MATPKG CATPKG DESIGN ACTYCUSH DUN
PAAA101000027A000

5320-01-033-9663 FLIS Packaging 2

THKUNIT CONTPKG DATA SOURCEINTER CONTUCLSPC MKGLVL ALVL BLVL C
0A1P00EQ

5320-01-033-9663 FLIS Packaging 3

UNIT PACK WEIGHTUNIT PACK SIZEUNIT PACK CUBECONT NSNOPIUNPKG ITEM DIMUNPKG ITEM WEIGHTSPI DATESPI NOSPI REVSUPPL INSTR
0000.30000.003O
