5962-01-127-6238, 5962011276238, 1818-1396, 2223205-1, 5180-0601, 51NW9615E37, 80-560-39, 807823-849, AM9016EPC, D2117-2 Data. Get Quote & Buy

5962-01-127-6238 (5962011276238) NSN Information

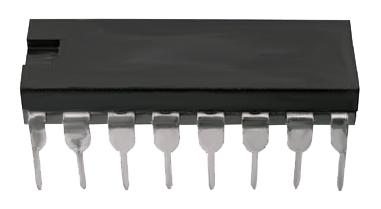

Photo	NSN	FSC	NIIN	Item Name	INC
	5962-01-127-6238	5962	011276238	Microcircuit, Memory	41015

5962-01-127-6238 Features

MRC	Parameter	Characteristics
ADAQ	Body Length	0.840 inches maximum
ADAT	Body Width	0.220 inches minimum and 0.310 inches maximum
ADAU	Body Height	0.140 inches minimum and 0.185 inches maximum
AEHX	Maximum Power Dissipation Rating	1.0 watts
AFGA	Operating Temp Range	-55.0/+110.0 deg celsius
AFJQ	Storage Temp Range	-60.0/+150.0 deg celsius
AGAV	End Item Identification	1055-01-092-0596 18876
CBBL	Features Provided	Hermetically sealed and monolithic and W/clock
CQSJ	Inclosure Material	Ceramic and glass
CQSZ	Inclosure Configuration	Dual-in-line
CQWX	Output Logic Form	N-type metal oxide-semiconductor logic
CQZP	Input Circuit Pattern	11 input
CTFT	Case Outline Source and Designator	D-2 MIL-M-38510
CWSG	Terminal Surface Treatment	Solder
CZEN	Voltage Rating and Type per Characteristic	15.0 volts maximum power source
CZEQ	Time Rating per Chacteristic	200.00 nanoseconds maximum propagation delay time, low to high level output
CZER	Memory Device Type	RAM
CZZZ	Memory Capacity	Unknown
TEST	Test Data Document	81349-MIL-M-38510 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
TTQY	Terminal Type and Quantity	16 printed circuit
ZZZK	Specification/Standard Data	81349-MIL-M-38510/240 government specification

5962-01-127-6238 Manufacturing Part Numbers (SKUs)

MFG SKU	CAGE	STATUS	RNVC	RNCC	SADC	RNAAC
1818-1396	28480	A	8	E		TX
2223205-1	19315	A	1	C	AC	ZZ
5180-0601	28480	A	8	E		TX
51NW9615E37	04713	A	8	E		48
6086944-1	03640	A	8	E		HD
80-560-39	56096	F	1	C	AC	ZZ
807823-849	53938	A	1	C	AF	TX
AM9016EPC	34335	A	8	E		TX
D2117-2	34649	H	1	C	AC	ZZ
DMS 87137B	16236	A	9	5		TX
G227277-1	49956	A	1	C	AC	ZZ
G286708-1	49956	A	1	C	AC	ZZ
M38510/24001BEA	81349	A	2	2		TX
M38510/24001BEB	81349	A	9	5		ZZ
M38510/24001BEC	81349	A	9	5		TX
M38510/24001BEX	81349	A	9	5		9Z
MB8116E	S0167	R	8	E		TX
MCM4116C20	04713	A	8	E		48
MIL-M-38510/240	81349	A	1	4		TX
MK4116	50088	A	8	E		TX
MK4116J-3	50088	A	1	C	AC	ZZ
TMS4116-20NL	01295	A	8	E		TX

5962-01-127-6238 Manufacturer

MFG SKU	CAGE	Manufacturer	Type	Status
AM9016EPC	34335	Advanced Micro Devices, Inc.	A	A
DMS 87137B	16236	DLA Land and Maritime	H	A
807823-849	53938	Evans & Sutherland Computer	A	A
51NW9615E37	04713	Freescale Semiconductor Inc.	A	A
MCM4116C20	04713	Freescale Semiconductor Inc.	A	A
MB8116E	S0167	Fujitsu LTD	E	R
1818-1396	28480	Hewlett Packard Co.	A	A
5180-0601	28480	Hewlett Packard Co.	A	A
2223205-1	19315	Honeywell Intl Inc. Defense Avionics	A	A
D2117-2	34649	Intel Corp.	A	H
6086944-1	03640	Lockheed Martin Corporation	A	A
M38510/24001BEA	81349	Military Specifications	M	A
M38510/24001BEB	81349	Military Specifications	M	A
M38510/24001BEC	81349	Military Specifications	M	A
M38510/24001BEX	81349	Military Specifications	M	A
MIL-M-38510/240	81349	Military Specifications	M	A
G227277-1	49956	Raytheon Company	A	A
G286708-1	49956	Raytheon Company	A	A
MK4116	50088	Stmicroelectronics Inc.	A	A
MK4116J-3	50088	Stmicroelectronics Inc.	A	A
TMS4116-20NL	01295	Texas Instruments Incorporated	A	A
80-560-39	56096	Zentec Corp.	A	F

5962-01-127-6238 Replaces the Following Cancelled NSN

Cancelled NSN	Cancelled NIIN
5962-01-108-1955	011081955
5962-01-120-8932	011208932
5962-01-184-0253	011840253
5962-01-184-7449	011847449

5962-01-127-6238 FLIS Identification

PMIC	ADPE CODE	CRITL CODE	DEMIL CODE	DEMIL INTG	NIIN ASGMT	ESD	HMIC	ENAC	SCHEDULE_B	INC
U	0	X	Q	3	04-MAR-1982	B	N		8542900000	41015

5962-01-127-6238 FLIS Management

MOE	REC REP CODE	MGMT CTL	USC
DF	N	SF9EH-V	F
DS	N	-------	I
DN		9B-----	N
DM	Z	16B2---	M

5962-01-127-6238 Demilitarization Codes & Management

DML	PMIC	HMIC	ADPEC	Criticality	ESDC
Q		N	0	X	B

5962-01-127-6238 Miscellaneous Management

MOE (S_A)	SOS	AAC	QUP	UI	CIIC	RC	MCC	SVC
DF	SMS	V	1	EA	U	N	SF9EH-V	F
DF	SMS	V	1	EA	U	N	SF9EH-V	I
DF	SMS	V	1	EA	U	N	SF9EH-V	M
DF	SMS	V	1	EA	U	N	SF9EH-V	N
DM	SMS	Y	1	EA	U	Z	16B2---	F
DM	SMS	Y	1	EA	U	Z	16B2---	I
DM	SMS	Y	1	EA	U	Z	16B2---	M
DM	SMS	Y	1	EA	U	Z	16B2---	N
DN	SMS	Y	1	EA	U		9B-----	F
DN	SMS	Y	1	EA	U		9B-----	I
DN	SMS	Y	1	EA	U		9B-----	M
DN	SMS	Y	1	EA	U		9B-----	N
DS	SMS	Y	1	EA	U	N	-------	F
DS	SMS	Y	1	EA	U	N	-------	I
DS	SMS	Y	1	EA	U	N	-------	M
DS	SMS	Y	1	EA	U	N	-------	N

5962-01-127-6238 Component / End Item

WPN SYS ID	WPN SYS SVC	WEAPON SYSTEM
23	N	Ohio Class Ssbn (Trident)
26	F	Aircraft, F-16
44	N	Helicopter, Lamps Mark III, SH-60B
82	F	Support Equipment, F-15 Aircraft
AV	N	AN/SPS-49 Radar
BK	N	Non-Trident Exterior Communication
ER	N	Helicopter, Carrier Based Asw, SH-60F
EX	N	Los Angeles Class Ssn (688)
EZ	N	Ticonderoga Class Cg (47)
FO	N	Mt Whitney LCC-20 Class
FP	N	Ship, Supply Class Taoe
GP	F	AN/FPS-117 Long Range Radar (Lrr)
HZ	N	Forrestal Class Cv
JA	N	Nimitz Class Cvn
JC	N	Fms - Kidd Class Ddg
JD	N	Arleigh Burke Class Ddg
JF	N	Oliver Perry Class (FFG-7)
JK	N	Wasp Class Lhd
JL	N	Tarawa Class Lha
JM	N	Emory S. Land Class as
JR	N	Fms - Knox Class Ff
JS	N	Whidbey Island Class Lsd
JW	N	Fms - Newport Class Lst
KB	N	Usns Henry J. Kaiser Class Tao
KP	N	Tactical Data Information Exchange System Tadix B Tre
MQ	N	Blue Ridge Class LCC-19
SP	N	Trident Exterior Communications
SZ	N	2M/ATE Microminiature Automatic Test Equipment
UY	N	Ballistic Missile Defense (Bmd)
W5	N	Austin Class (LPD-4)
WE	N	Submarine Communications and Antenna Systems
YL	N	Helicopter, Seahawk, H-60
YR	N	Fms - Build Frigates Class Ships

5962-01-127-6238 Non-consumable Item Support

MOE RULE	NIMSC	DSOR
MC49
FXGX
S911
N9BN
G860
YS01
ZC01
ZG01
ZH01
ZK01
ZR01
ZU01
ZW01
VJ01
WP01
YA01
YB01
YD01

5962-01-127-6238 Management Control Air Force

FUND	BUDGET	MMAC	PVC
SF	9	EH	V

5962-01-127-6238 Management Control Marine Corps

SAC	CEC	MEC	MIC	OTC	PCC
1	6	B2

5962-01-127-6238 Management Control Navy

COG	SMIC	IRRC	SMCC
9B

5962-01-127-6238 Freight

NMFC	NMFC SUB	UFC	HMC	LTL	LCL	WCC	TCC	SHC	ADC	ACC	ASH	NMF DESC
061045	Z	34580		W		72D	3	9	A	HZ

5962-01-127-6238 FLIS Packaging 1

PICA SICA	TOS	ICQ	MOP	CLNG DRYING	PRES MAT	WRAP MAT	PKG CAT	PKG DESIGN ACTY	CUSH DUN
P		AAA	GX	1	00	ZZ	69Z0		ZZ

5962-01-127-6238 FLIS Packaging 2

THK	UNIT CONT	PKG DATA SOURCE	INTER CONT	UCL	SPC MKG	LVL A	LVL B	LVL C
C	ZZ	P		ZZ	Q	Q	6

5962-01-127-6238 FLIS Packaging 3

UNIT PACK WEIGHT	UNIT PACK SIZE	UNIT PACK CUBE	CONT NSN	OPI	UNPKG ITEM DIM	UNPKG ITEM WEIGHT	SPI DATE	SPI NO	SPI REV	SUPPL INSTR
0000.1		0000.003		M						UNIT PACKAGE MARKING REQUI

Let us help you source NSN parts like 5962-01-127-6238, hard to find, long lead time, and obsolete components.
