5962-01-118-5895 (5962011185895) NSN Information

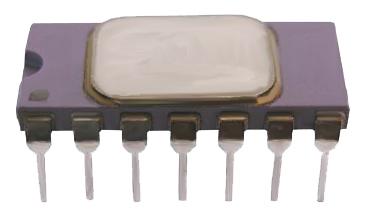

Photo	NSN	FSC	NIIN	Item Name	INC
	5962-01-118-5895	5962	011185895	Microcircuit, Digital	31779

5962-01-118-5895 Features

MRC	Parameter	Characteristics
ADAQ	Body Length	0.785 inches maximum
ADAT	Body Width	0.220 inches minimum and 0.310 inches maximum
ADAU	Body Height	0.140 inches minimum and 0.180 inches maximum
AEHX	Maximum Power Dissipation Rating	500.0 milliwatts
AFGA	Operating Temp Range	-55.0/+125.0 deg celsius
AFJQ	Storage Temp Range	-65.0/+125.0 deg celsius
AGAV	End Item Identification	Entry device, program, tam A12757; support equipment, B-52, B-1; deep submergence systems programs (dssp); radar set, lightweight 3D (AN/TPS-59), ground mobile force satellite com term (AN/TC-93A); aircraft, AC-130H, MC-130H, EC-130E, HC-130); aircraft, C-2A (reprocured); engine, aircraft, F100-PW-200 (F-16A/B/C/D)
CBBL	Features Provided	Hermetically sealed and monolithic and positive outputs
CQSJ	Inclosure Material	Ceramic and glass
CQSZ	Inclosure Configuration	Dual-in-line
CQWX	Output Logic Form	Complementary-metal oxide-semiconductor logic
CQZP	Input Circuit Pattern	Quad 2 input
CRTL	Criticality Code Justification	FEAT
CSSL	Design Function and Quantity	4 gate, nand
CTFT	Case Outline Source and Designator	D-1 MIL-M-38510
CTQX	Current Rating per Characteristic	10.00 milliamperes nominal output
CWSG	Terminal Surface Treatment	Solder
CZEN	Voltage Rating and Type per Characteristic	18.0 volts maximum power source
FEAT	Special Features	Weapon system essential
TEST	Test Data Document	14933-77046 drawing (this is the basic governing drawing, such as a contractor drawing, original equipment manufacturer drawing, etc.; excludes any specification, standard or other document that may be referenced in a basic governing drawing)
TTQY	Terminal Type and Quantity	14 printed circuit

5962-01-118-5895 Manufacturing Part Numbers (SKUs)

MFG SKU	CAGE	STATUS	RNVC	RNCC	SADC	RNAAC
000-8003-793	94756	A	1	5		TX
001 4161 149364	D8770	H	9	5		ZG
07G04093	50319	A	1	5		TX
0N402259-4	98230	A	1	C	AF	ZZ
10074449-101	94580	A	1	5		TX
10129444	A486G	A	9	6		WF
115685-0001	65597	A	1	5		48
11829476	19200	A	1	5		BF
12310451	19207	A	8	E		BD
12310451	20418	R	8	E		BD
143503556	31795	A	1	C	AH	48
156-0961-02	80009	A	1	C	A5	TX
172A1350	05606	A	1	C	AW	TX
1820-1577	1LQK8	R	9	5		ZZ
1820-1577	28480	A	9	5		TX
1820-1577	7ZXR5	A	1	C	9F	ZZ
1820-1600	28480	A	1	C	AC	ZZ
20282	30377	A	2	5		9Z
351-8342-010	13499	A	9	5		TX
404632	89536	A	1	5		TX
445/4/03234/093	K0668	A	8	E		ZA
51-P08729T001	94990	R	1	C	AC	ZZ
510004093	1JL37	F	1	C	AC	ZZ
77046	67268	A	1	4		ZZ
7704601CA	67268	A	2	2		ZZ
7704601CB	67268	A	9	5		ZZ
7704601CX	14933	R	9	5		ZZ
7704601CX	67268	A	9	5		ZZ
80801-1	07148	A	1	C	AW	TX
81-9016-0270-6	12578	R	1	C	AC	ZZ
9650001	64506	A	8	E		9Z
B4028478-37	56996	A	1	5		TX
CD4-093BF/3	21921	F	1	C	AF	TX
CD4093BCN	27014	A	1	C	AC	ZZ
CD4093BD/3	18714	F	9	5		TX
CD4093BD/3	C7191	R	9	5		ZG
CD4093BD/3A	C7191	R	9	5		ZG
CD4093BEX	52414	A	1	C	AF	TX
CD4093BF	19089	F	1	C	AC	ZZ
CD4093BMD/883	27014	A	9	5		ZZ
CD4093BMJ/883B	27014	A	9	5		TX
CD4093BMJ/883C	27014	A	9	5		ZZ
CM05-093BA	08748	A	1	C	AC	ZZ
F4-093BDMQB	07263	A	1	C	AC	ZZ
I01-0000-351	14304	A	1	C	AC	ZZ
JM38510/17701BCX	81349	A	1	C	AC	ZZ
MC14093B	55136	F	1	C	AC	ZZ
MC14093BCPDS	04713	A	8	E		9Z
U04093-F	34764	H	1	C	AH	48

5962-01-118-5895 Manufacturer

MFG SKU	CAGE	Manufacturer	Type	Status
CD4093BD/3	C7191	Adelco Elektronik GMBH	E	R
CD4093BD/3A	C7191	Adelco Elektronik GMBH	E	R
1820-1577	1LQK8	Agilent Technologies Inc.	A	R
MC14093B	55136	Bell and Howell Co. Audio-Visual	A	F
000-8003-793	94756	Boeing Company, The	A	A
7704601CX	14933	Defense Electronics Supply Center	A	R
B4028478-37	56996	Department of the Army HQ	A	A
77046	67268	DLA Land and Maritime	M	A
7704601CA	67268	DLA Land and Maritime	M	A
7704601CB	67268	DLA Land and Maritime	M	A
7704601CX	67268	DLA Land and Maritime	M	A
12310451	20418	DRS Sustainment Systems Inc.	A	R
143503556	31795	Eaton Corporation	A	A
CM05-093BA	08748	Eldec Corporation	A	A
CD4093BEX	52414	Emerson Electric Co.	A	A
F4-093BDMQB	07263	Fairchild Semiconductor Corp.	A	A
404632	89536	Fluke Corporation	A	A
MC14093BCPDS	04713	Freescale Semiconductor Inc.	A	A
172A1350	05606	General Dynamics Armament And	A	A
CD4093BD/3	18714	Harris Corp.	A	F
I01-0000-351	14304	Harris Corporation	A	A
07G04093	50319	Hekimian Laboratories Inc.	A	A
1820-1577	28480	Hewlett Packard Co.	A	A
1820-1600	28480	Hewlett Packard Co.	A	A
10074449-101	94580	Honeywell International Inc.	A	A
1820-1577	7ZXR5	Keysight Technologies, Inc.	A	A
JM38510/17701BCX	81349	Military Specifications	M	A
81-9016-0270-6	12578	Minnesota Mining and Mfg Co.	A	R
51-P08729T001	94990	Mtrl Inc.	A	R
0N402259-4	98230	National Security Agency	A	A
CD4093BCN	27014	National Semiconductor Corporation	A	A
CD4093BMD/883	27014	National Semiconductor Corporation	A	A
CD4093BMJ/883B	27014	National Semiconductor Corporation	A	A
CD4093BMJ/883C	27014	National Semiconductor Corporation	A	A
10129444	A486G	Paeaeesikunta	H	A
CD4-093BF/3	21921	RCA Corp.	A	F
351-8342-010	13499	Rockwell Collins Inc.	A	A
9650001	64506	Saint-Gobain Ceramics & Plastics	A	A
U04093-F	34764	Scientific Radio Systems Inc.	A	H
445/4/03234/093	K0668	Selex Galileo LTD	E	A
20282	30377	Smiths Aerospace Inc. Electronic	A	A
CD4093BF	19089	Swimrite Mfg Co. Inc.	A	F
510004093	1JL37	TAU-Tron Inc.	A	F
001 4161 149364	D8770	TE KA DE Felten & Guilleaume	E	H
156-0961-02	80009	Tektronix Inc.	A	A
115685-0001	65597	Thales ATM Inc.	A	A
11829476	19200	U S Army Armament Research	H	A
12310451	19207	U S Army Tank Automotive Command	H	A
80801-1	07148	United Technologies Corp.	A	A
