5961-01-254-8381 (5961012548381) NSN Information

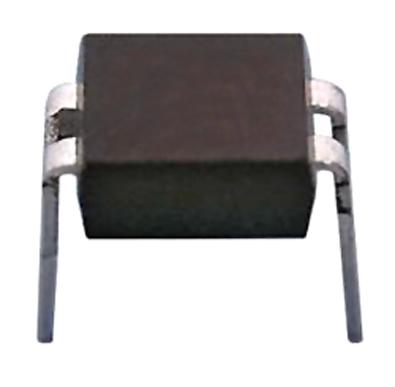

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-254-8381 | 5961 | 012548381 | Transistor | 20588 |
5961-01-254-8381 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Plastic |
| ABHP | Overall Length | 0.280 inches maximum |
| ABJT | Terminal Length | 0.150 inches maximum |
| ABKW | Overall Height | 0.140 inches maximum |
| ABMK | Overall Width | 0.198 inches maximum |
| AXGY | Mounting Method | Terminal |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 60.0 maximum drain to source voltage |
| CTQX | Current Rating per Characteristic | 0.40 amperes source cutoff current maximum of standard range |
| CTRD | Power Rating per Characteristic | 1.0 watts small-signal input power, common-collector absolute |
| CTSG | Maximum Operating Temp per Measurement Point | 150.0 deg celsius junction |
| FEAT | Special Features | 4-PIN, dual in-line package |
| TTQY | Terminal Type and Quantity | 4 printed circuit |
5961-01-254-8381 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| GEPSP206 | 55438 | A | 2 | 5 | 48 | ||||
| IRFD1Z3 | 34371 | A | 9 | 5 | ZZ | ||||
| IRFD1Z3 | 81483 | A | 2 | 3 | ZZ |
5961-01-254-8381 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| GEPSP206 | 55438 | Goodrich Lighting Systems Inc. | A | A | |
| IRFD1Z3 | 81483 | International Rectifier Corporation | A | A | |
| IRFD1Z3 | 34371 | Intersil Corporation | A | A |
5961-01-254-8381 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 11-MAY-1987 | B | N | 8541500080 | 20588 |
5961-01-254-8381 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DN | 9B----- | N | |||
| DS | ------- | I |
5961-01-254-8381 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X | B |
5961-01-254-8381 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DN | SMS | J | 1 | EA | 0 | U | 9B----- | I | |
| DN | SMS | J | 1 | EA | 0 | U | 9B----- | N | |
| DS | SMS | J | 1 | EA | 0 | U | ------- | I | |
| DS | SMS | J | 1 | EA | 0 | U | ------- | N |
5961-01-254-8381 Component / End Item
| WPN SYS ID | WPN SYS SVC | WEAPON SYSTEM |
|---|---|---|
| 02 | N | Strategic Weapon Systems(poseidon and Trident) |
5961-01-254-8381 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| N9BN | ||
| BGX1 |
5961-01-254-8381 Management Control Navy
| COG | SMIC | IRRC | SMCC |
|---|---|---|---|
| 9B |
5961-01-254-8381 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 063025 | Z | 34525 | W | 72D | 3 | 9 | A | HZ |
5961-01-254-8381 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | A | AAA | GX | 1 | 00 | ZZ | 69F0 | ZZ |
5961-01-254-8381 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| C | ZZ | P | ZZ | Q | Q | U |
5961-01-254-8381 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.1 | 0000.002 | M | N CHANNEL MOSFET. |
