5961-01-244-3798 (5961012443798) NSN Information

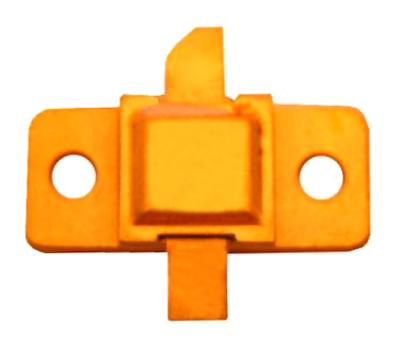

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-244-3798 | 5961 | 012443798 | Transistor | 20588 |
5961-01-244-3798 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Ceramic and metal |
| ABHP | Overall Length | 0.896 inches nominal |
| ABKW | Overall Height | 0.184 inches nominal |
| ABMK | Overall Width | 0.800 inches nominal |
| AGAV | End Item Identification | Distance measuring equipment (dme) |
| AKPV | Mounting Facility Quantity | 2 |
| AXGY | Mounting Method | Unthreaded hole |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 4.0 minimum breakdown voltage, emitter-to-base, collector open and 50.0 nominal collector supply voltage and 55.0 minimum breakdown voltage, collector-to-emitter, with base short-circuited to emitter |
| CTQX | Current Rating per Characteristic | 30.00 amperes source cutoff current maximum |
| CTRD | Power Rating per Characteristic | 875.0 watts small-signal input power, common-collector preset |
| TTQY | Terminal Type and Quantity | 2 ribbon |
5961-01-244-3798 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| DMEG250 | 08125 | A | 2 | 3 | ZZ | ||||
| DMEG250 | 58135 | H | 9 | 5 | 48 |
5961-01-244-3798 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| DMEG250 | 58135 | Acrian Inc. | A | H | |
| DMEG250 | 08125 | U S Dept of Transportation | A | A |
5961-01-244-3798 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | B | 11-NOV-1986 | A | N | 8541500080 | 20588 |
5961-01-244-3798 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5961-01-244-3798 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| B | N | X | A |
5961-01-244-3798 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5961-01-244-3798 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5961-01-244-3798 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
