5961-01-165-0452 (5961011650452) NSN Information

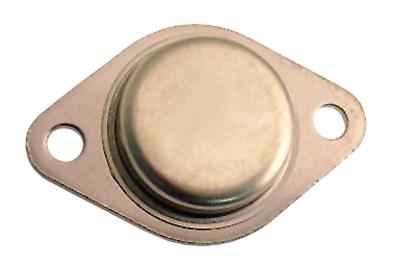

Photo	NSN	FSC	NIIN	Item Name	INC
	5961-01-165-0452	5961	011650452	Transistor	20588

5961-01-165-0452 Features

MRC	Parameter	Characteristics
ABBH	Inclosure Material	Metal
ABHP	Overall Length	1.573 inches maximum
ABKW	Overall Height	0.360 inches maximum
ABMK	Overall Width	1.050 inches maximum
AKPV	Mounting Facility Quantity	2
ALAS	Internal Configuration	Field effect
ALAZ	Joint Electronic Device Engineering Council/Jedec/Case Outline Designation	T0-3
ALBA	Electrode Internally-Electrically Connected to Case	Drain
AXGY	Mounting Method	Unthreaded hole
CBBL	Features Provided	Hermetically sealed case
CTMZ	Semiconductor Material	Silicon
CTQN	Voltage Rating in Volts per Characteristic	200.0 maximum drain to source voltage and 200.0 maximum drain to gate voltage
CTQX	Current Rating per Characteristic	36.00 amperes maximum off-state current, peak
CTRD	Power Rating per Characteristic	75.0 watts maximum total power dissipation
CTSG	Maximum Operating Temp per Measurement Point	150.0 deg celsius junction
TEST	Test Data Document	81349-MIL-PRF-19500 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
TTQY	Terminal Type and Quantity	2 pin and 1 case
ZZZK	Specification/Standard Data	81349-MIL-PRF-19500/542 government specification
