5961-01-141-5644 (5961011415644) NSN Information

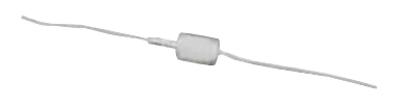

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-141-5644 | 5961 | 011415644 | Semiconductor Device, Diode | 20589 |
5961-01-141-5644 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 0.357 inches maximum |
| ABJT | Terminal Length | 1.000 inches minimum |
| ADAV | Overall Diameter | 0.235 inches maximum |
| AFZC | Function for Which Designed | Transient suppressor |
| ALAZ | Joint Electronic Device Engineering Council/Jedec/Case Outline Designation | D0-13 |
| ALBA | Electrode Internally-Electrically Connected to Case | Collector |
| AXGY | Mounting Method | Terminal |
| CBBL | Features Provided | Hermetically sealed case |
| CTQN | Voltage Rating in Volts per Characteristic | 231.0 maximum breakdown voltage, dc |
| CTQX | Current Rating per Characteristic | 1.00 microamperes maximum reverse current, dc |
| CTRD | Power Rating per Characteristic | 1.5 milliwatts maximum total power dissipation |
| CTSG | Maximum Operating Temp per Measurement Point | 175.0 deg celsius ambient air |
| MATT | Material | Glass inclosure |
| MATT | Material | Silicon semiconductor |
| TEST | Test Data Document | 81349-MIL-S-19500 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| TTQY | Terminal Type and Quantity | 2 uninsulated wire lead |
| ZZZK | Specification/Standard Data | 81349-MIL-S-19500/507 government specification |
5961-01-141-5644 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 1N6072 | 24444 | F | 1 | C | AF | TX | |||
| 1N6072 | 80131 | A | 1 | C | AF | TX | |||
| JAN1N6072A | 81349 | A | 2 | 2 | TX | ||||
| MIL-PRF-19500/507 | 81349 | A | 1 | 4 | ZZ | ||||
| MIL-S-19500/507 | 81349 | A | 9 | 5 | TX | ||||
| RELEASE6593 | 80131 | A | 1 | C | AF | TX |
5961-01-141-5644 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 1N6072 | 80131 | Electronic Industries Association | A | A | |
| RELEASE6593 | 80131 | Electronic Industries Association | A | A | |
| 1N6072 | 24444 | General Semiconductor Industries Inc. | A | F | |
| JAN1N6072A | 81349 | Military Specifications | M | A | |
| MIL-PRF-19500/507 | 81349 | Military Specifications | M | A | |
| MIL-S-19500/507 | 81349 | Military Specifications | M | A |
5961-01-141-5644 Replaces the Following Cancelled NSN
| Cancelled NSN | Cancelled NIIN |
|---|---|
| 5961-01-119-2893 | 011192893 |
| 5961-01-140-0081 | 011400081 |
5961-01-141-5644 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| A | X | A | 01-NOV-1982 | A | N | 8541100070 | 20589 |
5961-01-141-5644 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | A |
5961-01-141-5644 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| ZC01 | ||
| ZE01 | ||
| ZG01 | ||
| ZH01 | ||
| ZR01 | ||
| ZT01 | ||
| ZU01 | ||
| ZW01 | ||
| VK01 | ||
| YB01 |
5961-01-141-5644 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 063025 | Z | 34525 | W | 72D | Z | 9 | A | HZ |
5961-01-141-5644 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | XXX | 96 | X | XX | XX | 69F0 | XX |
5961-01-141-5644 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| X | XX | 99 | E | Q | U |
5961-01-141-5644 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.1 | 0000.001 |
