5961-01-127-5625 (5961011275625) NSN Information

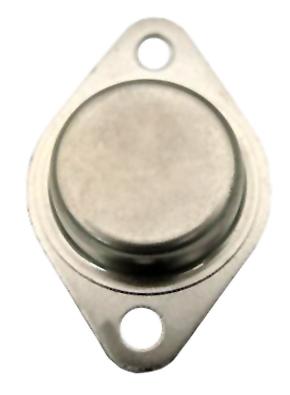

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-127-5625 | 5961 | 011275625 | Transistor | 20588 |
5961-01-127-5625 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Metal |
| ABHP | Overall Length | 0.375 inches nominal |
| ADAV | Overall Diameter | 0.875 inches maximum |
| AKPV | Mounting Facility Quantity | 2 |
| AXGY | Mounting Method | Unthreaded hole |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 80.0 maximum collector to base voltage/static/emitter open and 80.0 maximum collector to emitter voltage/static/base open and 5.0 maximum emitter to base voltage, static, collector open |
| CTQX | Current Rating per Characteristic | 10.00 amperes source cutoff current maximum |
| CTRD | Power Rating per Characteristic | 100.0 watts small-signal input power, common-collector preset |
| TTQY | Terminal Type and Quantity | 2 uninsulated wire lead and 1 case |
5961-01-127-5625 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 352-1005-020 | 13499 | A | 9 | 5 | TX | ||||
| 64903 | 34371 | A | 9 | 5 | 48 | ||||
| SK3182 | 34371 | A | 9 | 3 | 48 |
5961-01-127-5625 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 64903 | 34371 | Intersil Corporation | A | A | |
| SK3182 | 34371 | Intersil Corporation | A | A | |
| 352-1005-020 | 13499 | Rockwell Collins Inc. | A | A |
5961-01-127-5625 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| A | X | A | 1 | 03-MAR-1982 | A | N | 8541500080 | 20588 |
5961-01-127-5625 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X | A |
5961-01-127-5625 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| YW01 | ||
| ZE01 | ||
| ZH01 | ||
| ZR01 | ||
| YA01 | ||
| YB01 |
5961-01-127-5625 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 063025 | Z | 34525 | W | 72D | Z | 9 | A | HZ |
5961-01-127-5625 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | XXX | ZZ | X | XX | XX | 69F0 | XX |
5961-01-127-5625 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| X | XX | P | 00 | Q | Q | 6 |
5961-01-127-5625 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.1 | 0000.004 | O |
