5961-01-114-3019 (5961011143019) NSN Information

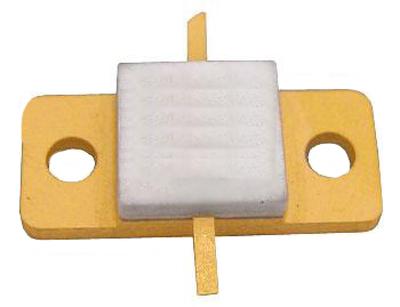

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-114-3019 | 5961 | 011143019 | Transistor | 20588 |
5961-01-114-3019 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Metal |
| ABHP | Overall Length | 0.396 inches nominal |
| ABKW | Overall Height | 0.185 inches nominal |
| ABMK | Overall Width | 0.396 inches nominal |
| AGAV | End Item Identification | Transponder suppressor system, directional (atcbi) (FA9875) |
| AKPV | Mounting Facility Quantity | 2 |
| AXGY | Mounting Method | Unthreaded hole |
| CBBL | Features Provided | Hermetically sealed case |
| CTQN | Voltage Rating in Volts per Characteristic | 55.0 nominal collector to base voltage/static/emitter open |
| CTQX | Current Rating per Characteristic | 12.00 amperes source cutoff current maximum |
| CTRD | Power Rating per Characteristic | 390.0 watts small-signal input power, common-collector absolute |
| CTSG | Maximum Operating Temp per Measurement Point | 200.0 deg celsius junction |
| TTQY | Terminal Type and Quantity | 2 ribbon |
5961-01-114-3019 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 406226 | 12909 | R | 9 | 5 | 48 | ||||
| 406226 | 20284 | A | 2 | 5 | 48 | ||||
| 60038 | 08125 | A | 2 | 3 | ZZ | ||||
| 60038 | 58135 | H | 9 | 5 | 48 |
5961-01-114-3019 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 60038 | 58135 | Acrian Inc. | A | H | |
| 406226 | 12909 | Cardion Inc. | A | R | |
| 406226 | 20284 | Target Corporation | F | A | |
| 60038 | 08125 | U S Dept of Transportation | A | A |
5961-01-114-3019 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 16-JUN-1981 | A | N | 8541500080 | 20588 |
5961-01-114-3019 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5961-01-114-3019 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X | A |
5961-01-114-3019 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5961-01-114-3019 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5961-01-114-3019 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
