5961-01-046-9585 (5961010469585) NSN Information

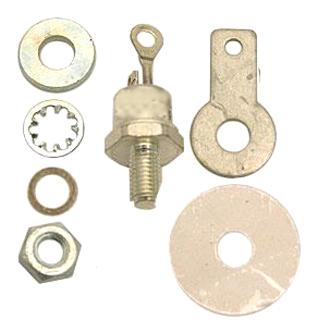

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-046-9585 | 5961 | 010469585 | Semiconductor Device, Thyristor | 33096 |
5961-01-046-9585 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Metal |
| ABHP | Overall Length | 1.736 inches maximum |
| AKPV | Mounting Facility Quantity | 1 |
| AXGY | Mounting Method | Threaded stud |
| CCDG | Overall Width Across Flats | 0.544 inches minimum and 0.563 inches maximum |
| CQJX | Nominal Thread Size | 0.250 inches |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 500.0 maximum nonrepetitive peak reverse voltage and 400.0 maximum repetitive peak reverse voltage and 400.0 maximum repetitive peak off-state voltage and 5.0 maximum peak gate voltage |
| CTQX | Current Rating per Characteristic | 16.00 amperes maximum average on-state current, 180 degrees conduction angle, average over a full 60-HZ cycle and 150.00 amperes maximum peak nonrepetitive surge current |
| CTSG | Maximum Operating Temp per Measurement Point | 125.0 deg celsius ambient air |
| TEST | Test Data Document | 81349-MIL-S-19500 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| THSD | Thread Series Designator | UNF |
| TTQY | Terminal Type and Quantity | 1 threaded stud and 2 tab, solder lug |
| ZZZK | Specification/Standard Data | 81349-MIL-S-19500/108 government specification |
