5961-01-033-2329 (5961010332329) NSN Information

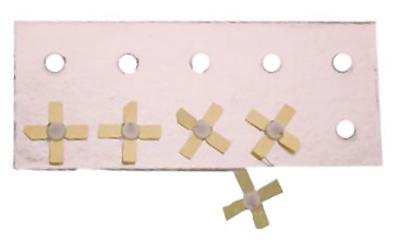

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-033-2329 | 5961 | 010332329 | Transistor | 20588 |
5961-01-033-2329 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Ceramic |
| ABHP | Overall Length | 0.246 inches maximum |
| ABMK | Overall Width | 0.300 inches maximum |
| AKPV | Mounting Facility Quantity | 1 |
| ALAS | Internal Configuration | Junction contact |
| ALBA | Electrode Internally-Electrically Connected to Case | Collector |
| AXGY | Mounting Method | Threaded stud |
| CQJX | Nominal Thread Size | 0.164 inches |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 50.0 nominal breakdown voltage, collector-to-emitter, with base short-circuited to emitter |
| CTQX | Current Rating per Characteristic | 500.00 milliamperes source cutoff current maximum |
| CTRD | Power Rating per Characteristic | 10.0 watts small-signal input power, common-collector preset |
| CTSG | Maximum Operating Temp per Measurement Point | 200.0 deg celsius junction |
| FEAT | Special Features | Junction pattern arrangement: npn |
| THSD | Thread Series Designator | UNC |
| TTQY | Terminal Type and Quantity | 4 ferrule |
5961-01-033-2329 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 4038795-0001 | 06845 | A | 2 | 3 | 48 | ||||
| D3-28 | 50155 | A | 2 | 5 | 48 |
5961-01-033-2329 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 4038795-0001 | 06845 | Raytheon Company | A | A | |
| D3-28 | 50155 | Varian Associates Inc. | A | A |
5961-01-033-2329 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 31-DEC-1976 | N | 8541500080 | 20588 |
5961-01-033-2329 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DS | ------- | I |
5961-01-033-2329 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
5961-01-033-2329 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DS | SMS | J | 1 | EA | 0 | U | ------- | I |
5961-01-033-2329 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| BGX1 | ||
| ZH01 | ||
| YD01 |
5961-01-033-2329 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 063025 | Z | 34525 | W | 658 | Z | 9 | A | HZ |
5961-01-033-2329 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | AAA | ZZ | 1 | ZZ | ZZ | 69F0 | ZZ |
5961-01-033-2329 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| C | ZZ | P | ZZ | Q | Q | U |
5961-01-033-2329 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.0 | 0000.004 | M | PRESERVATION AND PACKAGING |
