5961-01-020-0069 (5961010200069) NSN Information

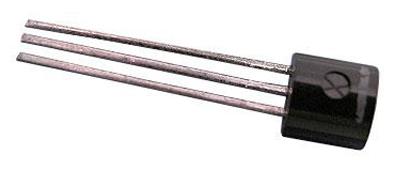

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-020-0069 | 5961 | 010200069 | Transistor | 20588 |
5961-01-020-0069 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Plastic |
| ABHP | Overall Length | 0.175 inches minimum and 0.205 inches maximum |
| ABJT | Terminal Length | 0.500 inches minimum |
| ABKW | Overall Height | 0.178 inches minimum and 0.210 inches maximum |
| ABMK | Overall Width | 0.125 inches minimum and 0.165 inches maximum |
| ALAS | Internal Configuration | Field effect |
| ALAZ | Joint Electronic Device Engineering Council/Jedec/Case Outline Designation | TO-92 |
| AXGY | Mounting Method | Terminal |
| CTMZ | Semiconductor Material | Silicon |
| TTQY | Terminal Type and Quantity | 3 uninsulated wire lead |
5961-01-020-0069 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 48-869502 | 50012 | F | 9 | 5 | 48 | ||||
| 48-869505 | 50012 | F | 1 | C | 48 | ||||
| 48R869502 | 08125 | A | 2 | 3 | ZZ | ||||
| 48R869502 | 1VPW8 | A | 9 | 5 | ZZ | ||||
| 48R869502 | 94990 | R | 9 | 5 | 48 | ||||
| M9502 | 04713 | A | 9 | 5 | 48 | ||||
| M9505 | 04713 | A | 1 | C | 48 |
5961-01-020-0069 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| M9502 | 04713 | Freescale Semiconductor Inc. | A | A | |
| M9505 | 04713 | Freescale Semiconductor Inc. | A | A | |
| 48R869502 | 1VPW8 | General Dynamics C4 Systems Inc. | A | A | |
| 48-869502 | 50012 | Mtrl Communications Group Parts | A | F | |
| 48-869505 | 50012 | Mtrl Communications Group Parts | A | F | |
| 48R869502 | 94990 | Mtrl Inc. | A | R | |
| 48R869502 | 08125 | U S Dept of Transportation | A | A |
5961-01-020-0069 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 25-APR-1976 | A | N | 8541500080 | 20588 |
5961-01-020-0069 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5961-01-020-0069 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X | A |
5961-01-020-0069 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5961-01-020-0069 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5961-01-020-0069 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
