5961-01-008-1353 (5961010081353) NSN Information

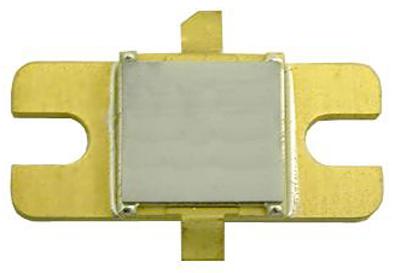

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-01-008-1353 | 5961 | 010081353 | Transistor | 20588 |
5961-01-008-1353 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Ceramic |
| ABHP | Overall Length | 0.900 inches maximum |
| ABKW | Overall Height | 0.225 inches maximum |
| ABMK | Overall Width | 0.397 inches maximum |
| AKPV | Mounting Facility Quantity | 2 |
| ALAS | Internal Configuration | Junction contact |
| ALBA | Electrode Internally-Electrically Connected to Case | Collector |
| AXGY | Mounting Method | Unthreaded hole |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 40.0 maximum breakdown voltage, collector-to-base, emitter open |
| CTRD | Power Rating per Characteristic | 8.0 watts small-signal input power, common-collector preset |
| CTSG | Maximum Operating Temp per Measurement Point | 75.0 deg celsius junction |
| FEAT | Special Features | Junction pattern arrangement: npn |
| TTQY | Terminal Type and Quantity | 2 uninsulated wire lead |
