5961-01-003-4560 (5961010034560) NSN Information
| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|

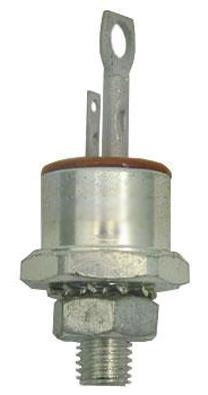

 | 5961-01-003-4560 | 5961 | 010034560 | Semiconductor Device, Thyristor | 33096 |
5961-01-003-4560 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Metal |
| ABHP | Overall Length | 0.565 inches maximum |
| ADAV | Overall Diameter | 0.667 inches maximum |
| AKPV | Mounting Facility Quantity | 1 |
| AXGY | Mounting Method | Threaded stud |
| CBBL | Features Provided | Hermetically sealed case |
| CCDG | Overall Width Across Flats | 0.683 inches maximum |
| CQJX | Nominal Thread Size | 0.250 inches |
| CTMZ | Semiconductor Material | Silicon |
| CTQN | Voltage Rating in Volts per Characteristic | 100.0 nominal off-state voltage, rms total |
| CTQX | Current Rating per Characteristic | 80.00 amperes drain current nanoamperes |
| CTSG | Maximum Operating Temp per Measurement Point | 125.0 deg celsius junction |
| THSD | Thread Series Designator | UNF |
| TTQY | Terminal Type and Quantity | 1 threaded stud and 2 tab, solder lug |
