5961-00-477-0714 (5961004770714) NSN Information

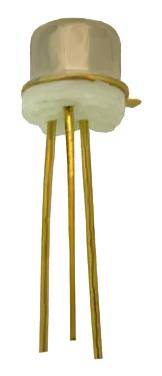

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5961-00-477-0714 | 5961 | 004770714 | Transistor | 20588 |
5961-00-477-0714 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABBH | Inclosure Material | Metal |
| ABHP | Overall Length | 0.115 inches minimum and 0.150 inches maximum |
| ADAV | Overall Diameter | 0.209 inches minimum and 0.230 inches maximum |
| ALAS | Internal Configuration | Junction contact |
| ALBA | Electrode Internally-Electrically Connected to Case | Collector |
| CBBL | Features Provided | Hermetically sealed case |
| CTMZ | Semiconductor Material | Silicon |
| FEAT | Special Features | Junction pattern arrangement: npn |
| TTQY | Terminal Type and Quantity | 3 uninsulated wire lead |
5961-00-477-0714 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 2686507-01 | 10001 | A | 2 | 5 | HH | ||||
| 7900531-01 | 90536 | A | 2 | 1 | TA | ||||
| S7322 | 07263 | A | 2 | 3 | TU | ||||
| SF2544 | 04713 | A | 9 | 5 | 48 | ||||
| SM4766 | 01295 | A | 2 | 5 | 48 |
5961-00-477-0714 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| S7322 | 07263 | Fairchild Semiconductor Corp. | A | A | |
| SF2544 | 04713 | Freescale Semiconductor Inc. | A | A | |
| 7900531-01 | 90536 | Lockheed Martin Corporation | A | A | |
| 2686507-01 | 10001 | Navair and Navsea Managed | A | A | |
| SM4766 | 01295 | Texas Instruments Incorporated | A | A |
5961-00-477-0714 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 0 | X | D | 18-JUN-1971 | N | 8541500080 | 20588 |
5961-00-477-0714 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| D | N |
5961-00-477-0714 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| ZC01 |
5961-00-477-0714 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 063025 | Z | 34525 | W | J | 658 | Z | 9 | A | HZ |
