5955-00-001-3333 (5955000013333) NSN Information

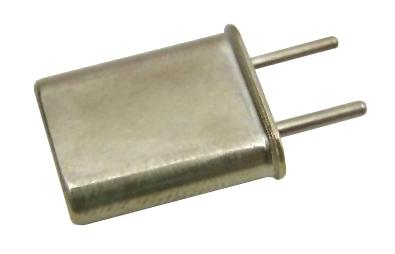

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5955-00-001-3333 | 5955 | 000013333 | Crystal Unit, Quartz | 00196 |
5955-00-001-3333 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 0.753 inches minimum and 0.778 inches maximum |
| ABJT | Terminal Length | 0.223 inches minimum and 0.248 inches maximum |
| ABMK | Overall Width | 0.435 inches maximum |
| ADAQ | Body Length | 0.530 inches maximum |
| ADAT | Body Width | 0.402 inches maximum |
| ADPR | Body Thickness | 0.150 inches maximum |
| ADUM | Overall Thickness | 0.183 inches maximum |
| AEBT | Terminal Diameter | 0.038 inches minimum and 0.042 inches maximum |
| AEHC | Mode of Oscillation | Fifth overtone |
| AEHD | Circuit Resonance | Series resonance |
| AEHF | Shunt Capacitance in Picofarads | 7.0 maximum |
| AEHG | Specified Frequency | 85.150 megahertz |
| AEHT | Center to Center Distance Between Terminals | 0.184 inches minimum and 0.200 inches maximum |
| AFGA | Operating Temp Range | -40.0 to 90.0 deg celsius and -55.0 to 105.0 deg celsius |
| CQBK | Unable to Decode | Unable to decode and unable to decode |
| CQYL | Drive Level Rating | 1.6 milliwatts minimum and 2.4 milliwatts maximum |
| CRFX | Frequency Tolerance for Operating Temp in Percent | -0.002 to 0.002 and -0.003 to 0.003 |
| CRMP | Equivalent Resistance Value in Ohms | 50.0 nominal |
| STYL | Style Designator | Oval body, pin terminals |
| TEST | Test Data Document | 81349-MILC3098 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
5955-00-001-3333 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| CR-83/U85.150000MHZ | 81349 | A | 2 | 2 | TX | ||||
| CR83U84-150000MHZ | 00136 | A | 1 | 5 | 48 | ||||
| CR83U84-150000MHZ | 02533 | H | 9 | 5 | 48 | ||||
| CR83U84-150000MHZ | 52847 | F | 9 | 5 | 48 | ||||
| CR83U84-150000MHZ | S0522 | H | 9 | 5 | 48 | ||||
| CR83U85-150000MHZ | 02533 | H | 9 | 5 | 48 | ||||
| CR83U85-150000MHZ | 13571 | F | 9 | 5 | 48 | ||||
| CR83U85-150000MHZ | 1LAX4 | A | 1 | 5 | ZZ | ||||
| CR83U85-150000MHZ | 52847 | F | 9 | 5 | 48 | ||||
| CR83U85-150000MHZ | 59492 | R | 9 | 5 | 48 | ||||
| CR83U85-150000MHZ | S0522 | H | 9 | 5 | 48 | ||||
| ER83U85-150000MHZ | 13571 | F | 9 | 5 | 48 | ||||
| MILC3098-60 | 81349 | A | 1 | 4 | 48 |
5955-00-001-3333 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| CR83U85-150000MHZ | 13571 | Electronic Research Co. | A | F | |
| ER83U85-150000MHZ | 13571 | Electronic Research Co. | A | F | |
| CR83U84-150000MHZ | 02533 | Leigh Instruments LTD Frequency | A | H | |
| CR83U85-150000MHZ | 02533 | Leigh Instruments LTD Frequency | A | H | |
| CR-83/U85.150000MHZ | 81349 | Military Specifications | M | A | |
| MILC3098-60 | 81349 | Military Specifications | M | A | |
| CR83U85-150000MHZ | 1LAX4 | MMD Components | A | A | |
| CR83U85-150000MHZ | 59492 | Quartztek Inc. | A | R | |
| CR83U84-150000MHZ | S0522 | Tadiran LTD | E | H | |
| CR83U85-150000MHZ | S0522 | Tadiran LTD | E | H | |
| CR83U84-150000MHZ | 52847 | United States Crystal Corp. | A | F | |
| CR83U85-150000MHZ | 52847 | United States Crystal Corp. | A | F | |
| CR83U84-150000MHZ | 00136 | Vectron International Inc. | A | A |
