5950-00-236-8902 (262152, SAW261, 262152-1) Data

5950-00-236-8902 (5950002368902) NSN Information

PhotoNSNFSCNIINItem NameINC

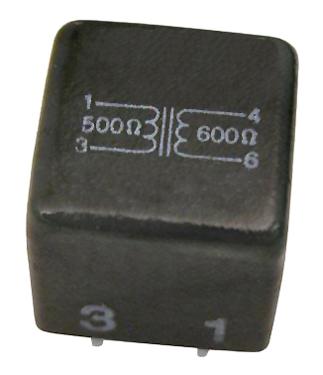

5950-00-236-8902 Photo
5950-00-236-89025950002368902Transformer, Audio Frequency00780

5950-00-236-8902 Features

MRCParameterCharacteristics
AARGReliability IndicatorNot established
ACYWImpedance Rating in Ohms500.0 nominal single component single primary
ACYWImpedance Rating in Ohms600.0 nominal single component single secondary
ACZBFrequency Rating300.0 hertz minimum single component and 3.0 kilohertz maximum single component
ACZFMaximum Transformer Power Rating50.0 milliwatts single component
ADAQBody Length0.708 inches nominal
ADATBody Width0.708 inches nominal
ADAUBody Height0.625 inches nominal
AKNAInclosure TypeFully inclosed
AXGYMounting MethodTerminal single group
BPLCWinding Function and Quantity1 primary single component and 1 secondary single component
CRBZWinding Operating Current2.0 milliamperes dc maximum single component single primary
TTQYTerminal Type and Quantity4 pin

5950-00-236-8902 Manufacturing Part Numbers (SKUs)

MFG SKUCAGESTATUSISCRNVCRNCCSADCDACHCCRNAAC
26215255901A95 48
262152-155901A23 ZZ
SAW26104386R95 48
