5945-01-346-2330 (5945013462330) NSN Information

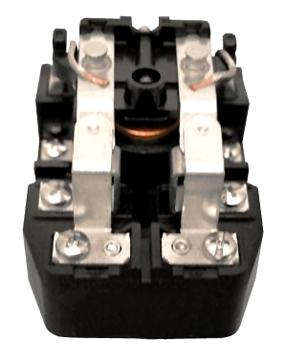

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5945-01-346-2330 | 5945 | 013462330 | Relay, Electromagnetic | 32512 |
5945-01-346-2330 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 2.510 inches maximum |
| ABKQ | Center to Center Distance Between Mounting Facilities Parallel to Length | 1.875 inches nominal single mounting facility |
| ABKW | Overall Height | 2.280 inches maximum |
| ABMK | Overall Width | 2.500 inches maximum |
| ADTV | Case Material | Metal |
| ADZC | Environmental Protection | Dustproof |
| AEBV | Unthreaded Mounting Hole Diameter | 0.185 inches minimum and 0.190 inches maximum single mounting facility |
| AFJN | Fragility Factor | Moderately rugged |
| AFRG | Contact Material | Silver |
| AJSS | Frequency in Hertz | 50.0 minimum and 60.0 maximum |
| AKDX | Winding Quantity | 1 |
| AKSL | Purpose for Which Designed | General |
| APCN | Coil Quantity | 1 |
| APNA | Winding DC Resistance Rating | 246.5 ohms minimum and 333.5 ohms maximum single winding |
| APNP | Duty Type | Continuous |
| AXHR | Mounting Facility Type and Quantity | 2 unthreaded hole single mounting facility |
| BBRG | Storage Type | General purpose warehouse |
| CBME | Cubic Measure | 14.307 cubic inches |
| CQYJ | Mounting Facility Pattern | In-line single mounting facility |
| CRNG | Nonpile-up Main Contact Arrangement | 2 pole, double throw, one position momentary |
| CSXF | Operating Voltage Rating and Type at Specified Temp | 120.0 volts ac 25 deg celsius single winding |
| CTDL | Main Contact Load Current Rating at Maximum Rated Voltage | 25.0 amperes ac resistive load |
| CWAB | Main Contact Maximum Voltage Rating in Volts | 240.0 ac |
| PMLC | Precious Material and Location | Contacts silver |
| PRMT | Precious Material | Silver |
| TTQY | Terminal Type and Quantity | 5 screw all functions |
5945-01-346-2330 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 122-001341 | 56425 | F | 9 | 5 | TX | ||||
| PRD11AY0-120VAC | 77342 | A | 9 | 3 | TX |
5945-01-346-2330 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 122-001341 | 56425 | International Switchboard Corp. | A | F | |
| PRD11AY0-120VAC | 77342 | Tyco Electronics Corporation | A | A |
5945-01-346-2330 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| S | X | A | 1 | 30-SEP-1991 | N | 8536490075 | 32512 |
5945-01-346-2330 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DN | 9B----- | N | |||
| DS | ------- | I |
5945-01-346-2330 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
5945-01-346-2330 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DN | SMS | Z | 1 | EA | 0 | U | 9B----- | I | |
| DN | SMS | Z | 1 | EA | 0 | U | 9B----- | N | |
| DS | SMS | Z | 1 | EA | 0 | U | ------- | I | |
| DS | SMS | Z | 1 | EA | 0 | U | ------- | N |
5945-01-346-2330 Component / End Item
| WPN SYS ID | WPN SYS SVC | WEAPON SYSTEM |
|---|---|---|
| VC | N | Victorious Class T-Agos 19 |
5945-01-346-2330 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| N9BN | ||
| BGX1 |
5945-01-346-2330 Management Control Navy
| COG | SMIC | IRRC | SMCC |
|---|---|---|---|
| 9B |
5945-01-346-2330 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 061360 | X | 34430 | M | P | 72D | Z | 9 | A | HZ |
5945-01-346-2330 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | A | AAA | 41 | 1 | 00 | 00 | 69Z0 | NA |
5945-01-346-2330 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| C | D3 | P | ZZ | Q | Q |
5945-01-346-2330 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.6 | 0000.008 | M | UNIT PACKAGE MARKING REQUI |
