5945-01-294-4625 (5945012944625) NSN Information

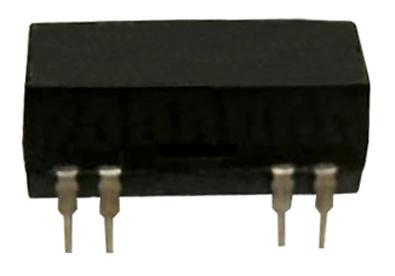

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5945-01-294-4625 | 5945 | 012944625 | Relay, Reed | 30544 |
5945-01-294-4625 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 0.781 inches nominal |
| ABKW | Overall Height | 0.344 inches nominal |
| ABMK | Overall Width | 0.268 inches nominal |
| ADZC | Environmental Protection | Dustproof |
| AGAV | End Item Identification | ARTS2 |
| AKDX | Winding Quantity | 1 |
| APCN | Coil Quantity | 1 |
| APNA | Winding DC Resistance Rating | 288.0 ohms nominal single winding |
| APNP | Duty Type | Continuous |
| AXHR | Mounting Facility Type and Quantity | 1 printed circuit terminal single mounting facility |
| CBBL | Features Provided | Polarized |
| CRNG | Nonpile-up Main Contact Arrangement | 1 pole, single throw, normally open, momentary action |
| CSXF | Operating Voltage Rating and Type at Specified Temp | 6.0 volts dc 25 deg celsius single winding |
| CTDL | Main Contact Load Current Rating at Maximum Rated Voltage | 10.0 amperes ac resistive load |
| CWAB | Main Contact Maximum Voltage Rating in Volts | 100.0 dc |
| TTQY | Terminal Type and Quantity | 1 printed circuit all functions |
