5945-01-219-9624 (5945012199624) NSN Information

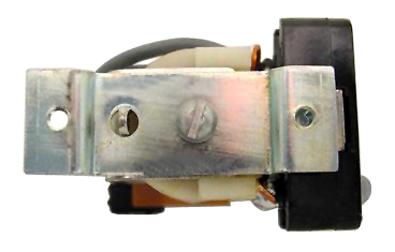

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5945-01-219-9624 | 5945 | 012199624 | Relay, Electromagnetic | 32512 |
5945-01-219-9624 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 2.000 inches nominal |
| AEBV | Unthreaded Mounting Hole Diameter | 0.156 inches nominal single mounting facility |
| AGAV | End Item Identification | Vasi (VASI2) |
| AKDX | Winding Quantity | 1 |
| APCN | Coil Quantity | 1 |
| APNP | Duty Type | Continuous |
| AXHR | Mounting Facility Type and Quantity | 2 unthreaded hole single mounting facility |
| CQYJ | Mounting Facility Pattern | In-line single mounting facility |
| CSXF | Operating Voltage Rating and Type at Specified Temp | 60.0 volts dc 25 deg celsius single winding |
| TTQY | Terminal Type and Quantity | 3 tab, solder lug all functions |
5945-01-219-9624 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 283XAX117 | 08125 | A | 2 | 3 | ZZ | ||||
| 283XAX117 | 78290 | F | 9 | 5 | 48 | ||||
| A2A3XAX117 | 78290 | F | 9 | 5 | 48 |
5945-01-219-9624 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 283XAX117 | 78290 | Struthers-Dunn Inc. | A | F | |
| A2A3XAX117 | 78290 | Struthers-Dunn Inc. | A | F | |
| 283XAX117 | 08125 | U S Dept of Transportation | A | A |
5945-01-219-9624 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 05-NOV-1985 | N | 32512 |
5945-01-219-9624 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5945-01-219-9624 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
5945-01-219-9624 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5945-01-219-9624 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5945-01-219-9624 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
