5945-00-951-8112 (5945009518112) NSN Information

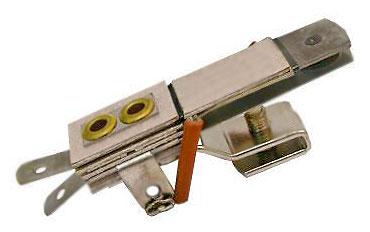

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5945-00-951-8112 | 5945 | 009518112 | Relay, Thermal | 03883 |
5945-00-951-8112 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABHP | Overall Length | 2.750 inches nominal |
| ABKW | Overall Height | 0.750 inches nominal |
| ABMK | Overall Width | 0.625 inches nominal |
| AGAV | End Item Identification | Engine generator (eg) |
| APFR | Contact Arrangement | Single pole, single throw, normally open |
| CYCS | Contact Maximum Voltage Rating in Volts | 230.0 ac and 32.0 dc |
| CYCU | Heater Voltage Rating in Volts | 32.0 |
| CYCV | Heater Power Rating in Watts | 1500.0 |
| FEAT | Special Features | Timing range 5 sec to 3 minutes; timing range is adjustable; 2 mountingholes 0.312 in diameter spaced 0.312INCH center to center |
5945-00-951-8112 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| D22847 | 08125 | A | 2 | 3 | ZZ | ||||
| D22847 | 18859 | H | 9 | 5 | 48 | ||||
| TKN032VDC | 74389 | A | 2 | 5 | 48 |
5945-00-951-8112 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| D22847 | 18859 | Duplex Div. Warner and Swasey Co. | A | H | |
| D22847 | 08125 | U S Dept of Transportation | A | A | |
| TKN032VDC | 74389 | Ulanet George Co. | A | A |
5945-00-951-8112 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | A | 1 | 27-APR-1966 | N | 03883 |
5945-00-951-8112 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5945-00-951-8112 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | N |
5945-00-951-8112 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5945-00-951-8112 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5945-00-951-8112 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
