5930-01-061-1512 (5930010611512) NSN Information

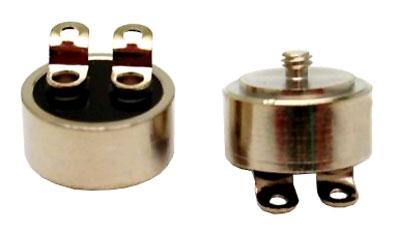

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5930-01-061-1512 | 5930 | 010611512 | Switch, Thermostatic | 00451 |
5930-01-061-1512 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 2A single threaded bushing |
| AASA | Thread Length | 0.085 inches nominal single threaded bushing |
| ABKW | Overall Height | 0.733 inches nominal |
| ADAU | Body Height | 0.305 inches nominal |
| ADAV | Overall Diameter | 0.660 inches nominal |
| AKBY | Temp Sensing Element Type | Internal sensor |
| AXGY | Mounting Method | Threaded bushing |
| CMLP | Thread Quantity per Inch | 40 single threaded bushing |
| CQGB | Contact Action Stimulus | Increase |
| CQJX | Nominal Thread Size | 0.138 inches single threaded bushing |
| CSCF | Terminal Type | Tab, solder lug |
| CTHF | Contact Load Current Rating | 6.0 amperes resistive load single voltage |
| CTYC | Contact Adjustability | Deactuation point not adjustable and actuation point not adjustable |
| CTZB | Contact Voltage Rating in Volts | 110.0 ac at sea level single voltage |
| MEDA | Media for Which Designed | GAS |
| THSD | Thread Series Designator | Unf single threaded bushing |
5930-01-061-1512 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 424-929 | 26151 | A | 2 | 5 | 48 | ||||
| 424-929 | 93410 | F | 9 | 5 | 48 | ||||
| OA-70 | 1G5X3 | A | 1 | C | 9X | ZZ | |||
| OA-70 | 59270 | A | 9 | 3 | ZZ | ||||
| S0-70-1512 | 3W339 | F | 9 | 5 | 48 |
5930-01-061-1512 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 424-929 | 93410 | Essex Group Inc. Controls Div. | A | F | |
| OA-70 | 1G5X3 | SEL Sales Inc. | F | A | |
| OA-70 | 59270 | Selco Products Inc. | A | A | |
| S0-70-1512 | 3W339 | Selco Systems Inc. | F | F | |
| 424-929 | 26151 | Stemco Inc. | A | A |
5930-01-061-1512 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 13-JUN-1978 | P | 9032100000 | 00451 |
5930-01-061-1512 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DF | N | SF9---N | F | ||
| GE | ------- | I |
5930-01-061-1512 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | P | X |
5930-01-061-1512 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DF | G69 | G | 1 | EA | 0 | U | N | SF9---N | F |
| DF | G69 | G | 1 | EA | 0 | U | N | SF9---N | I |
| GE | G69 | G | 1 | EA | 0 | U | ------- | F | |
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5930-01-061-1512 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| FX48 | ||
| B481 |
5930-01-061-1512 Management Control Air Force
| FUND | BUDGET | MMAC | PVC |
|---|---|---|---|
| SF | 9 | N |
5930-01-061-1512 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
