5930-01-061-1511 (5930010611511) NSN Information

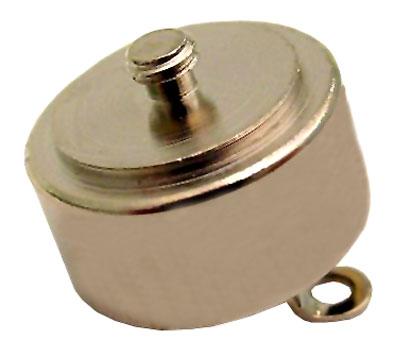

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5930-01-061-1511 | 5930 | 010611511 | Switch, Thermostatic | 00451 |
5930-01-061-1511 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 2A single threaded bushing |
| AASA | Thread Length | 0.085 inches nominal single threaded bushing |
| ABKW | Overall Height | 0.562 inches nominal |
| ADAU | Body Height | 0.305 inches nominal |
| ADAV | Overall Diameter | 0.660 inches nominal |
| AGAV | End Item Identification | RTC3 |
| AKBY | Temp Sensing Element Type | Internal sensor |
| AWTN | Operating Temp Rating | 60.0 deg fahrenheit minimum and 80.0 deg fahrenheit maximum |
| AXGY | Mounting Method | Threaded bushing |
| CMLP | Thread Quantity per Inch | 40 single threaded bushing |
| CQGB | Contact Action Stimulus | Increase |
| CQJX | Nominal Thread Size | 0.138 inches single threaded bushing |
| CSCF | Terminal Type | Solder stud |
| CTHF | Contact Load Current Rating | 6.0 amperes resistive load single voltage |
| CTYC | Contact Adjustability | Deactuation point not adjustable and actuation point not adjustable |
| CTZB | Contact Voltage Rating in Volts | 110.0 ac at sea level sixth voltage |
| MEDA | Media for Which Designed | GAS |
| THSD | Thread Series Designator | Unf single threaded bushing |
5930-01-061-1511 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 424-681 | 26141 | A | 2 | 5 | 48 | ||||
| 424-681 | 93410 | F | 9 | 5 | 48 | ||||
| OA-80 | 1G5X3 | A | 1 | C | 9X | ZZ | |||
| OA-80 | 59270 | A | 9 | 3 | ZZ | ||||
| S0-80-1511 | 1G5X3 | A | 1 | C | 9X | ZZ | |||
| S0-80-1511 | 3W339 | F | 9 | 5 | 48 | ||||
| S0-80-1511 | 59270 | A | 9 | 5 | 48 |
5930-01-061-1511 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 424-681 | 93410 | Essex Group Inc. Controls Div. | A | F | |
| 424-681 | 26141 | Monroe Industries Inc. | A | A | |
| OA-80 | 1G5X3 | SEL Sales Inc. | F | A | |
| S0-80-1511 | 1G5X3 | SEL Sales Inc. | F | A | |
| OA-80 | 59270 | Selco Products Inc. | A | A | |
| S0-80-1511 | 59270 | Selco Products Inc. | A | A | |
| S0-80-1511 | 3W339 | Selco Systems Inc. | F | F |
5930-01-061-1511 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | A | 13-JUN-1978 | P | 9032100000 | 00451 |
5930-01-061-1511 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5930-01-061-1511 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | P | N |
5930-01-061-1511 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5930-01-061-1511 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 | ||
| ZH01 |
5930-01-061-1511 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
