5910-01-450-3503 (5910014503503) NSN Information

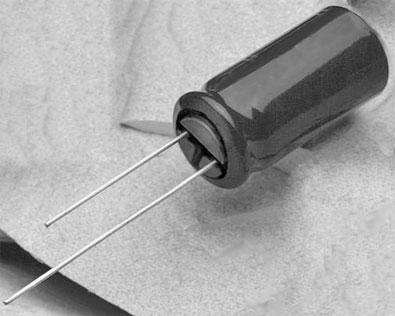

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5910-01-450-3503 | 5910 | 014503503 | Capacitor, Fixed, Plastic Dielectr | 00006 |
5910-01-450-3503 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAQL | Body Style | W/O mtg facilities, axial terminals |
| AARG | Reliability Indicator | Established |
| AARH | Reliability Failure Rate Level in Percent | 0.010 |
| ABJT | Terminal Length | 2.625 inches maximum |
| ABPM | Body Diameter | 0.557 inches minimum and 0.577 inches maximum |
| ADAQ | Body Length | 1.375 inches nominal |
| AEBZ | Schematic Diagram Designator | No common or grounded electrode(s) |
| CQBQ | Capacitance Value per Section | 0.150 microfarads single section |
| CQJJ | Nonderated Operating Temp | -65.0 deg celsius minimum and 125.0 deg celsius maximum |
| CQWM | Nonderated Continuous Voltage Rating and Type per Section | 400.0 dc single section |
| CRTP | Tolerance Range per Section | -10.00/+10.00 percent single section |
| CWJK | Case Material | Metal |
| TEST | Test Data Document | 81349-MIL-C-19978 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| TTQY | Terminal Type and Quantity | 2 uninsulated wire lead |
| ZZZK | Specification/Standard Data | 81349-MIL-C-19978/16 government specification |
