5910-01-314-0387 (5910013140387) NSN Information

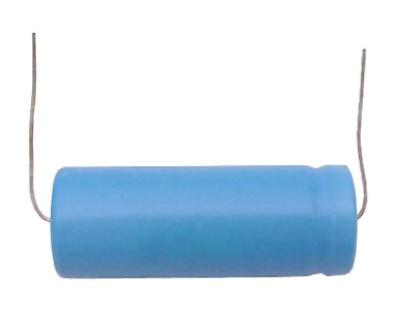

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5910-01-314-0387 | 5910 | 013140387 | Capacitor, Fixed, Electrolytic | 00008 |
5910-01-314-0387 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAQL | Body Style | W/O mtg facilities, axial terminals |
| AARG | Reliability Indicator | Not established |
| ABJT | Terminal Length | 2.500 inches nominal |
| ABPM | Body Diameter | 1.015 inches nominal |
| ADAQ | Body Length | 2.640 inches nominal |
| AEBT | Terminal Diameter | 0.040 inches nominal |
| AEBZ | Schematic Diagram Designator | No common or grounded electrode(s) |
| AECE | Anode Type | Plain foil |
| AECQ | Electrical Polarization | Polarized |
| CQBQ | Capacitance Value per Section | 8200.000 microfarads single section |
| CQJJ | Nonderated Operating Temp | -55.0 deg celsius minimum and 105.0 deg celsius maximum |
| CQWM | Nonderated Continuous Voltage Rating and Type per Section | 15.0 dc single section |
| CRTP | Tolerance Range per Section | -10.00/+75.00 percent single section |
| CWJK | Case Material | Metal |
| CWNJ | Capacitive Electrode Material | Aluminum |
| CWQC | Equivalent Series Resistance at Reference Temp in Ohms | 0.075 |
| CWQH | DC Leakage at Reference Temp | 0.431 milliamperes |
| TTQY | Terminal Type and Quantity | 2 uninsulated wire lead |
5910-01-314-0387 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| A14-007699-2 | 29989 | H | 9 | 5 | 48 | ||||
| TCX822U015L2L | 37942 | A | 2 | 3 | 48 | ||||
| TCX822U015N2L | 37942 | A | 2 | 5 | 48 |
5910-01-314-0387 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| A14-007699-2 | 29989 | Sonicraft Inc. | A | H | |
| TCX822U015L2L | 37942 | Yosemite Investment Inc. | A | A | |
| TCX822U015N2L | 37942 | Yosemite Investment Inc. | A | A |
5910-01-314-0387 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | B | 22-JAN-1990 | P | 8532290040 | 00008 |
5910-01-314-0387 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5910-01-314-0387 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| B | P | N |
5910-01-314-0387 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5910-01-314-0387 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5910-01-314-0387 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
