5910-01-046-0383 (MILC19978-1, M19978-1-1739J, MILC19978-13) Data

5910-01-046-0383 (5910010460383) NSN Information

PhotoNSNFSCNIINItem NameINC

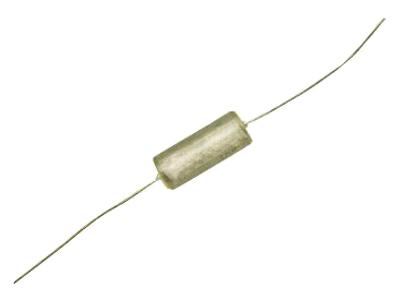

5910-01-046-0383 Photo
5910-01-046-03835910010460383Capacitor, Fixed, Plastic Dielectr00006

5910-01-046-0383 Features

MRCParameterCharacteristics
AAQLBody StyleW/O mtg facilities, axial terminals
AARGReliability IndicatorEstablished
AARHReliability Failure Rate Level in Percent0.1000
ABJTTerminal Length1.625 inches minimum
ABKWUnable to DecodeUnable to decode
ABMKUnable to DecodeUnable to decode
ABPMBody Diameter0.562 inches maximum
ADAQBody Length1.250 inches nominal
AEBTTerminal Diameter0.032 inches nominal
AEBZSchematic Diagram DesignatorNo common or grounded electrode(s)
AFHWInternal Electrical Connection TypeExtended foil
CBBLFeatures ProvidedHermetically sealed case
CQBFInsulation Resistance at Maximum Operating Temp5000.0 megohm-microfarads
CQBQCapacitance Value per Section0.470 microfarads single section
CQJJNonderated Operating Temp-65.0 deg celsius minimum and 85.0 deg celsius maximum
CQWMNonderated Continuous Voltage Rating and Type per Section200.0 dc single section
CRTPTolerance Range per Section-5.00/+5.00 percent single section
CWJKCase MaterialMetal
CWPKInsulation Resistance at Reference Temp100000.0 megohms
CWPMDissipation Factor at Reference Temp in Percent0.6000
CWSGTerminal Surface TreatmentSolder
CWSSDielectric MaterialPlastic polyethylene terephthalate
CWSZCase Insulation MaterialPlastic
TESTTest Data Document81349-MIL-C-19978 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
TTQYTerminal Type and Quantity2 uninsulated wire lead
ZZZKSpecification/Standard Data81349-MIL-C-19978/13 government specification
