5910-00-917-1701 (5910009171701) NSN Information

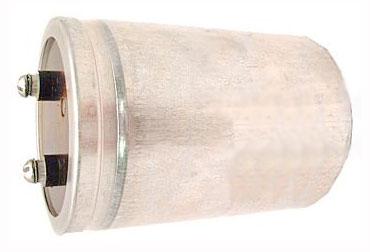

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5910-00-917-1701 | 5910 | 009171701 | Capacitor, Fixed, Electrolytic | 00008 |
5910-00-917-1701 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAQL | Body Style | W/O mtg facilities, terminal(s) on one end |
| AARG | Reliability Indicator | Not established |
| ABJT | Terminal Length | 0.281 inches nominal |
| ABKW | Unable to Decode | Unable to decode |
| ABMK | Unable to Decode | Unable to decode |
| ABPM | Body Diameter | 3.000 inches nominal |
| ADAQ | Body Length | 4.125 inches nominal |
| AEBZ | Schematic Diagram Designator | No common or grounded electrode(s) |
| AECE | Anode Type | Plain foil |
| AECN | Impedance at Minimum Operating Temp in Ohms | 1.1 |
| AECQ | Electrical Polarization | Polarized |
| AGAV | End Item Identification | Air traffic control beacon interrogator 4 (ATCBI4) |
| AKEJ | Mounting Facility Screw Thread Series Designator | UNF |
| BWGP | Section Quantity | 1 |
| CQBQ | Capacitance Value per Section | 22000.000 microfarads single section |
| CQJJ | Nonderated Operating Temp | -40.0 deg celsius minimum and 85.0 deg celsius maximum |
| CQJX | Nominal Thread Size | 0.190 inches |
| CQWM | Nonderated Continuous Voltage Rating and Type per Section | 25.0 dc single section |
| CRTP | Tolerance Range per Section | -10.00/+75.00 percent single section |
| CWJK | Case Material | Metal |
| CWNJ | Capacitive Electrode Material | Aluminum |
| CWPM | Dissipation Factor at Reference Temp in Percent | 74.0000 |
| CWQH | DC Leakage at Reference Temp | 1100.000 microamperes |
| TEST | Test Data Document | 81349-MIL-C-62 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| TTQY | Terminal Type and Quantity | 2 threaded hole |
5910-00-917-1701 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 3114DC223U025 | 80031 | H | 1 | C | AH | 48 | |||
| CE71C223F | 81349 | A | 2 | 2 | TX | ||||
| M62-12-023 | 81349 | A | 1 | 5 | TX | ||||
| MILC62-12 | 81349 | A | 1 | 4 | TX |
5910-00-917-1701 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 3114DC223U025 | 80031 | Mepco/Electra Inc. | A | H | |
| CE71C223F | 81349 | Military Specifications | M | A | |
| M62-12-023 | 81349 | Military Specifications | M | A | |
| MILC62-12 | 81349 | Military Specifications | M | A |
5910-00-917-1701 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 22-JUL-1966 | P | 8532290040 | 00008 |
5910-00-917-1701 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | P |
5910-00-917-1701 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| ZR01 | ||
| YA01 | ||
| YB01 |
5910-00-917-1701 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
5910-00-917-1701 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | XXX | ZZ | X | XX | XX | XX |
5910-00-917-1701 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| X | XX | A | Q | Q |
5910-00-917-1701 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.0 | 0000.000 | O |
