5905-01-151-9764 (5905011519764) NSN Information

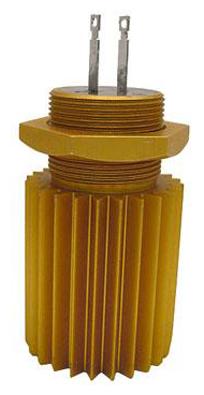

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5905-01-151-9764 | 5905 | 011519764 | Resistor, Fixed, Wire Wound, Induct | 37403 |
5905-01-151-9764 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAPE | Temp Coefficient of Resistance in PPM per DEG Celsius | -50.0 to 50.0 |
| AAPP | Electrical Resistance | 0.100 ohms |
| AAPQ | Resistance Tolerance in Percent | -1.000 to 1.000 |
| AAQA | Heat Sink Length | 12.000 inches |
| AAQB | Heat Sink Width | 12.000 inches |
| AAQE | Heat Sink Thickness | 0.125 inches |
| AAQG | Ambient Temp in DEG Celsius at Zero Percent Rated Power | 275.0 |
| AAQH | Temp Range of Temp Coefficient in DEG Celsius | -55.0 to 275.0 |
| AARG | Reliability Indicator | Not established |
| ABJT | Terminal Length | 0.780 inches nominal |
| ABPM | Body Diameter | 1.750 inches nominal |
| ADAP | Mounting Bushing Length | 0.970 inches nominal |
| ADAQ | Body Length | 2.000 inches nominal |
| AEFB | Power Dissipation Rating in Watts | 100.000 free air |
| AEHY | Ambient Temp at Full Rated Power | 25.0 deg celsius |
| AFYE | Mounting Bushing Diameter | 1.250 inches nominal |
| AGAV | End Item Identification | Approach lighting system, medium intensity, runway (malsr) |
| AKNA | Inclosure Type | Encased |
| CSCF | Terminal Type | Tab, solder lug |
| MATT | Material | Aluminum alloy heat sink |
| STYL | Style Designator | Axial terminals one end |
5905-01-151-9764 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 15A0025 | 52025 | R | 9 | 5 | 48 | ||||
| PH100R1 3PCT | 91637 | A | 2 | 3 | 48 |
5905-01-151-9764 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 15A0025 | 52025 | Siemens Energy & Automation Inc. | A | R | |
| PH100R1 3PCT | 91637 | Vishay Dale Electronics Inc. | A | A |
5905-01-151-9764 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | A | 25-APR-1983 | A | N | 8533390080 | 37403 |
5905-01-151-9764 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| GE | ------- | I |
5905-01-151-9764 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | N | A |
5905-01-151-9764 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| GE | G69 | G | 1 | EA | 0 | U | ------- | I |
5905-01-151-9764 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| B481 |
5905-01-151-9764 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093490 | X | 50270 | U | 713 | Z | 9 | A | HZ |
