5320-01-043-1932, 5320010431932, AF3552-6-05, AF3552-6-5, CR3552-6-5, HR3552-6-05, M7885/9-6-05, MIL-R-7885/9, NAS9311M-6-05 Data. Get Quote & Buy

5320-01-043-1932 (5320010431932) NSN Information

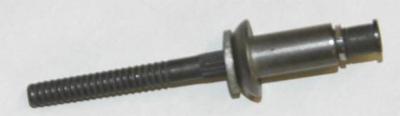

Photo	NSN	FSC	NIIN	Item Name	INC
	5320-01-043-1932	5320	010431932	Rivet, Blind	00864

5320-01-043-1932 Features

MRC	Parameter	Characteristics
AASB	Fastener Length	0.423 inches minimum
AASK	Head Style	Flush (flat) countersunk (included angle - less than 135 deg W or W/O chamfer)
AAZE	Shank Diameter	0.200 inches minimum and 0.204 inches maximum
AAZF	Shank Style	Self-plugging mechanically locked stem
AAZG	Head Major Diameter	0.349 inches minimum and 0.357 inches maximum
ABAF	Expansion Device	Serrated stem-type W
ANEE	Grip Length	0.251 inches minimum and 0.312 inches maximum
CRSQ	Countersink Angle	98.5 degrees minimum and 101.5 degrees maximum
MATT	Material	Nickel alloy R-405 or nickel alloy 400 sleeve
MATT	Material	Steel comp 632 stem
MDCL	Material Document and Classification	Ams 5657 assn std single material response stem
MDCL	Material Document and Classification	QQ-N-281 fed spec all material responses sleeve
ZZZK	Specification/Standard Data	81349-MIL-R-7885/9 government specification
ZZZT	Nondefinitive Spec/STD Data	1 type and B style and 2 class

5320-01-043-1932 Manufacturing Part Numbers (SKUs)

MFG SKU	CAGE	STATUS	RNVC	RNCC	RNAAC
AF3552-6-05	53551	A	2	5	ZZ
AF3552-6-5	53551	A	9	5	KZ
CR3552-6-5	06950	A	2	5	ZZ
CR3552-6-5	11815	A	2	5	KZ
CR3552-6-5	92215	A	9	5	KZ
CR3552-6-5	C4293	A	2	5	ZG
CR3552-6-5	F7652	R	9	5	ZF
HR3552-6-05	0HDW7	A	2	5	ZZ
M7885/9-6-05	81349	A	9	5	KZ
MIL-R-7885/9	81349	A	9	5	KZ
NAS9311M-6-05	80205	A	2	3	ZZ

5320-01-043-1932 Manufacturer

MFG SKU	CAGE	Manufacturer	Type	Status
CR3552-6-5	C4293	Alcoa Fastening Systems Fairchild	E	A
CR3552-6-5	06950	Alcoa Global Fasteners Inc.	A	A
CR3552-6-5	92215	Alcoa Global Fasteners Inc.	A	A
AF3552-6-05	53551	Allfast Fastening Systems Inc.	A	A
AF3552-6-5	53551	Allfast Fastening Systems Inc.	A	A
HR3552-6-05	0HDW7	Huck International Inc.	A	A
M7885/9-6-05	81349	Military Specifications	M	A
MIL-R-7885/9	81349	Military Specifications	M	A
NAS9311M-6-05	80205	National Aerospace Standards	C	A
CR3552-6-5	F7652	Satair Hardware S.A.S.	E	R
CR3552-6-5	11815	SPS Technologies LLC	A	A

5320-01-043-1932 FLIS Identification

PMIC	ADPE CODE	CRITL CODE	DEMIL CODE	DEMIL INTG	NIIN ASGMT	ESD	HMIC	ENAC	SCHEDULE_B	INC
U		X	A	1	21-JUN-1977		N		7508900000	00864

5320-01-043-1932 FLIS Management

MOE	REC REP CODE	MGMT CTL	USC
DS	N	-------	I
DF	N	SF9SX-V	F
DA	Z	T2200X-	A
DN		9B-----	N
GP		-------	C

5320-01-043-1932 Demilitarization Codes & Management

DML	PMIC	HMIC	ADPEC	Criticality	ESDC
A		N		X

5320-01-043-1932 Miscellaneous Management

MOE (S_A)	SOS	AAC	QUP	UI	CIIC	RC	MCC	SVC
DA	SMS	D	1	HD	U	Z	T2200X-	A
DA	SMS	D	1	HD	U	Z	T2200X-	C
DA	SMS	D	1	HD	U	Z	T2200X-	F
DA	SMS	D	1	HD	U	Z	T2200X-	I
DA	SMS	D	1	HD	U	Z	T2200X-	N
DF	SMS	D	1	HD	U	N	SF9SX-V	A
DF	SMS	D	1	HD	U	N	SF9SX-V	C
DF	SMS	D	1	HD	U	N	SF9SX-V	F
DF	SMS	D	1	HD	U	N	SF9SX-V	I
DF	SMS	D	1	HD	U	N	SF9SX-V	N
DN	SMS	D	1	HD	U		9B-----	A
DN	SMS	D	1	HD	U		9B-----	C
DN	SMS	D	1	HD	U		9B-----	F
DN	SMS	D	1	HD	U		9B-----	I
DN	SMS	D	1	HD	U		9B-----	N
DS	SMS	D	1	HD	U	N	-------	A
DS	SMS	D	1	HD	U	N	-------	C
DS	SMS	D	1	HD	U	N	-------	F
DS	SMS	D	1	HD	U	N	-------	I
DS	SMS	D	1	HD	U	N	-------	N
GP	SMS	D	1	HD	U		-------	A
GP	SMS	D	1	HD	U		-------	C
GP	SMS	D	1	HD	U		-------	F
GP	SMS	D	1	HD	U		-------	I
GP	SMS	D	1	HD	U		-------	N

5320-01-043-1932 Component / End Item

WPN SYS ID	WPN SYS SVC	WEAPON SYSTEM
02	F	Aircraft, Phantom F-4
04	F	Aircraft, Stratofortress B-52
05	F	Aircraft, Stratolifter C/KC-135
11	F	Aircraft, Galaxy C-5
19	F	Aircraft, Eagle F-15
24	F	Aircraft, Thunderbolt Ii, A-10
25	F	Aircraft, Awacs, E-3A
56	F	Aircraft, B-1B
75	F	Helicopter, HH-60
AT	F	Aircraft, Sof (AC-130H, MC-130H, EC-130E, HC-130, MC-130W)
BR	F	Engine, Aircraft, TF39-GE-1 (C-5A)
DT	F	Aircraft, Airlifter C-17A
QE	F	Helo, TH-1H Huey Ii

5320-01-043-1932 Non-consumable Item Support

MOE RULE	NIMSC	DSOR
A919
N9BZ
FXGI
C920
YD01
YJ01
ZA01
ZC01
ZF01
ZH01
ZK01
ZS01
ZT01
ZU01
ZW01
ZX01
VJ01
VK01
WG01
YA01
YB01
YC01

5320-01-043-1932 Management Control Air Force

FUND	BUDGET	MMAC	PVC
SF	9	SX	V

5320-01-043-1932 Management Control Army

MATCAT 1	MATCAT 2	MATCAT 3	MATCAT 4 5	ARC
T	2	2	00	X

5320-01-043-1932 Management Control Navy

COG	SMIC	IRRC	SMCC
9B

5320-01-043-1932 Freight

NMFC	NMFC SUB	UFC	HMC	LTL	LCL	WCC	TCC	SHC	ADC	ACC	ASH	NMF DESC
106510	X	54760		U		576	Z	9	A	BZ

5320-01-043-1932 FLIS Packaging 1

PICA SICA	TOS	ICQ	MOP	CLNG DRYING	PRES MAT	WRAP MAT	PKG CAT	PKG DESIGN ACTY	CUSH DUN
P		AAA	10	1	00	00	27A0		00

5320-01-043-1932 FLIS Packaging 2

THK	UNIT CONT	PKG DATA SOURCE	INTER CONT	UCL	SPC MKG	LVL A	LVL B	LVL C
0	A1	P		00	E	Q

5320-01-043-1932 FLIS Packaging 3

UNIT PACK WEIGHT	UNIT PACK SIZE	UNIT PACK CUBE	CONT NSN	OPI	UNPKG ITEM DIM	UNPKG ITEM WEIGHT	SPI DATE	SPI NO	SPI REV	SUPPL INSTR
0000.9		0000.024		O

Let us help you source NSN parts like 5320-01-043-1932, hard to find, long lead time, and obsolete components.
