5320-01-042-8250 (AF3553-6-04, MIL-R-7885/8, HR3553-6-04) Data

5320-01-042-8250 (5320010428250) NSN Information

PhotoNSNFSCNIINItem NameINC

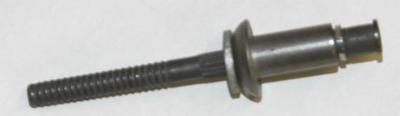

5320-01-042-8250 Photo
5320-01-042-82505320010428250Rivet, Blind00864

5320-01-042-8250 Features

MRCParameterCharacteristics
AASBFastener Length0.380 inches minimum and 0.400 inches maximum
AASKHead StyleUniversal
AASUHead Height0.080 inches minimum and 0.090 inches maximum
AAZEShank Diameter0.201 inches minimum and 0.205 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.365 inches minimum and 0.385 inches maximum
ABAFExpansion DeviceSerrated stem-type W
ABAJLubricationDry film
ANEEGrip Length0.188 inches minimum and 0.205 inches maximum
FEATSpecial FeaturesLubrication on stem only
MATTMaterialNickel alloy 400 sleeve or nickel alloy R-405 sleeve
MATTMaterialSteel stem
MDCLMaterial Document and ClassificationAms 5657 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-N-281 fed spec single material response sleeve

5320-01-042-8250 Manufacturing Part Numbers (SKUs)

MFG SKUCAGESTATUSISCRNVCRNCCSADCDACHCCRNAAC
AF3553-6-0453551A25 ZZ
AF3553-6-453551A95 KZ
ASNA0078E604KF5442A25 ZF
CR3553-6-406950A25 ZZ
CR3553-6-411815A25 KZ
CR3553-6-492215A95 KZ
CR3553-6-4C4293A25 ZG
CR3553-6-4F7652R95 ZF
HR3553-6-040HDW7A25 ZZ
M7885/8-6-0481349A95 KZ
MIL-R-7885/881349A95 KZ
NAS9310M-6-0480205A23 ZZ

5320-01-042-8250 Manufacturer

MFG SKUCAGEManufacturerTypeStatusRole
CR3553-6-4C4293Alcoa Fastening Systems FairchildEA
CR3553-6-406950Alcoa Global Fasteners Inc.AA
CR3553-6-492215Alcoa Global Fasteners Inc.AA
AF3553-6-0453551Allfast Fastening Systems Inc.AA
AF3553-6-453551Allfast Fastening Systems Inc.AA
HR3553-6-040HDW7Huck International Inc.AA
M7885/8-6-0481349Military SpecificationsMA
MIL-R-7885/881349Military SpecificationsMA
NAS9310M-6-0480205National Aerospace StandardsCA
ASNA0078E604KF5442Normalisation Generale EadsEA
CR3553-6-4F7652Satair Hardware S.A.S.ER
CR3553-6-411815SPS Technologies LLCAA
