FSCs>FSG 53 - Rivets, Fastening Devices & Materials>FSC 5320 Rivets>5320-01-040-4810

5320-01-040-4810 (NAS9304BNS-4-06, CR3243-4-6, HR3243-4-06) Data

5320-01-040-4810 (5320010404810) NSN Information

PhotoNSNFSCNIINItem NameINC

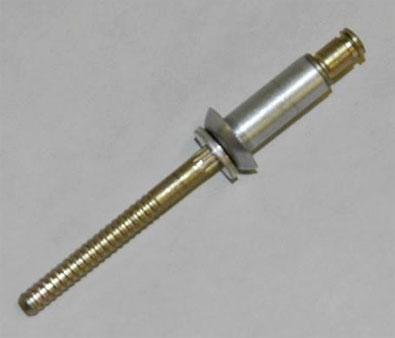

5320-01-040-4810 Photo
5320-01-040-48105320010404810Rivet, Blind00864

5320-01-040-4810 Features

MRCParameterCharacteristics
AASBFastener Length0.455 inches minimum and 0.475 inches maximum
AASKHead StyleUniversal
AASUHead Height0.054 inches minimum and 0.064 inches maximum
AAZEShank Diameter0.140 inches minimum and 0.143 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.238 inches minimum and 0.262 inches maximum
ABAFExpansion DeviceSerrated stem-type W
AGAVEnd Item IdentificationHelicopter, advance attack, AH-1W; aircraft, phantom F-4; engine, aircraft, TF-33-P-7 (C-141A/B); aircraft, delta dart F-106; aircraft, stratofortress B-52; aircraft, AC-130H, MC-130H, EC-130E, HC-130; aircraft, stratolifter C-135; aircraft, F-111; aircraft, hercules C-130; helicopter observation (ahip), OH-58D
ANEEGrip Length0.313 inches minimum and 0.375 inches maximum
FEATSpecial FeaturesNs" letters after the material code "b" indicate no preference to lock type (may be visible or internal). rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.
MATTMaterialAluminum alloy 5056 body
MATTMaterialSteel comp 8740 stem
MDCLMaterial Document and ClassificationAms 6322 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-A-430 fed spec single material response body
SFTTSurface TreatmentCadmium stem
SFTTSurface TreatmentChromate body
STDCSurface Treatment Document and ClassificationMIL-C-5541 mil spec single treatment response body
STDCSurface Treatment Document and ClassificationQQ-P-416, ty 2, cl 3 fed spec single treatment response stem

5320-01-040-4810 Manufacturing Part Numbers (SKUs)

MFG SKUCAGESTATUSISCRNVCRNCCSADCDACHCCRNAAC
5320PL15267149009HA96 WP
AF3243-4-653551A95 ZZ
BAC15FR4B681205A25 9Z
CR3243-4-0611815A23 9Z
CR3243-4-605693A95 KZ
CR3243-4-606950A25 ZZ
CR3243-4-611815A25 KZ
CR3243-4-692215A95 KZ
CR3243-4-6C4293A25 ZG
HC3243-4-0617446A25 ZZ
HC3243-4-617446A25 ZZ
HR3243-4-060HDW7A25 ZZ
M7885/6-4-0681349A95 KZ
MIL-R-7885/681349A95 KZ
NAS9304BNS-4-0680205A23 ZZ
OHCP-B04-060HDW7A25 KZ
OHCP-B04-0617446A95 KZ

5320-01-040-4810 Manufacturer

MFG SKUCAGEManufacturerTypeStatusRole
CR3243-4-6C4293Alcoa Fastening Systems FairchildEA
CR3243-4-606950Alcoa Global Fasteners Inc.AA
CR3243-4-692215Alcoa Global Fasteners Inc.AA
AF3243-4-653551Allfast Fastening Systems Inc.AA
CR3243-4-605693Cherry Textron Inc.AA
HC3243-4-0617446Huck International Inc.AA
HC3243-4-617446Huck International Inc.AA
HR3243-4-060HDW7Huck International Inc.AA
OHCP-B04-060HDW7Huck International Inc.AA
OHCP-B04-0617446Huck International Inc.AA
5320PL15267149009HInspektorat Wsparcia SIL ZbrojnychHA
M7885/6-4-0681349Military SpecificationsMA
MIL-R-7885/681349Military SpecificationsMA
NAS9304BNS-4-0680205National Aerospace StandardsCA
CR3243-4-0611815SPS Technologies LLCAA
CR3243-4-611815SPS Technologies LLCAA
BAC15FR4B681205The Boeing CompanyAA

5320-01-040-4810 Replaces the Following Cancelled NSN

Cancelled NSNCancelled NIIN
5320-01-421-4512014214512

5320-01-040-4810 FLIS Identification

PMICADPE CODECRITL CODEDEMIL CODEDEMIL INTGNIIN ASGMTESDHMICENACSCHEDULE_BINC
UXA108-MAY-1977N761610300000864

5320-01-040-4810 FLIS Management

MOEREC REP CODEMGMT CTLUSCPHRASE CODEPHRASE STATEMENT
DFNSF9SO-NF
DSN-------I
DN9B-----N
DAZT2200X-A
DMZ15B2---M
GP-------C

5320-01-040-4810 Demilitarization Codes & Management

DMLPMICHMICADPECCriticalityESDC
ANX

5320-01-040-4810 Miscellaneous Management

MOE (S_A)SOSAACQUPUISLCCIICRCMCCSVC
DASMSZ1HD0UZT2200X-A
DASMSZ1HD0UZT2200X-C
DASMSZ1HD0UZT2200X-F
DASMSZ1HD0UZT2200X-I
DASMSZ1HD0UZT2200X-M
DASMSZ1HD0UZT2200X-N
DFSMSZ1HD0UNSF9SO-NA
DFSMSZ1HD0UNSF9SO-NC
DFSMSZ1HD0UNSF9SO-NF
DFSMSZ1HD0UNSF9SO-NI
DFSMSZ1HD0UNSF9SO-NM
DFSMSZ1HD0UNSF9SO-NN
DMSMSZ1HD0UZ15B2---A
DMSMSZ1HD0UZ15B2---C
DMSMSZ1HD0UZ15B2---F
DMSMSZ1HD0UZ15B2---I
DMSMSZ1HD0UZ15B2---M
DMSMSZ1HD0UZ15B2---N
DNSMSZ1HD0U9B-----A
DNSMSZ1HD0U9B-----C
DNSMSZ1HD0U9B-----F
DNSMSZ1HD0U9B-----I
DNSMSZ1HD0U9B-----M
DNSMSZ1HD0U9B-----N
DSSMSZ1HD0UN-------A
DSSMSZ1HD0UN-------C
DSSMSZ1HD0UN-------F
DSSMSZ1HD0UN-------I
DSSMSZ1HD0UN-------M
DSSMSZ1HD0UN-------N
GPSMSZ1HD0U-------A
GPSMSZ1HD0U-------C
GPSMSZ1HD0U-------F
GPSMSZ1HD0U-------I
GPSMSZ1HD0U-------M
GPSMSZ1HD0U-------N

5320-01-040-4810 Component / End Item

WPN SYS IDWPN SYS SVCWEAPON SYSTEM
02FAircraft, Phantom F-4
04FAircraft, Stratofortress B-52
05FAircraft, Stratolifter C/KC-135
06FAircraft, Hercules C-130
09FAircraft, Delta Dart F-106
11FAircraft, Galaxy C-5
19FAircraft, Eagle F-15
24FAircraft, Thunderbolt Ii, A-10
26FAircraft, F-16
31F485L Tacs
41FAircraft, T-37
42FAircraft, T-38
48NHelicopter, Utility/Search and Recovery UH-1N
53NUH-1Y Helicopter
56FAircraft, B-1B
75FHelicopter, HH-60
78FCommunications Program, Combat Theater (Tri-Tac) 478I
ATFAircraft, Sof (AC-130H, MC-130H, EC-130E, HC-130, MC-130W)
AYFEngine, Aircraft TF33-P-3/5/9 (C/EC-135, B-52H)
C4NHelicopter, H1 All Versions
CPNHelicopter, Advance Attack, AH-1W
DTFAircraft, Airlifter C-17A
PAFU-2 Airframe
QEFHelo, TH-1H Huey Ii
VHAHelicopter Observation (Ahip), OH-58D

5320-01-040-4810 Non-consumable Item Support

MOE RULENIMSCDSOR
A919
N9BZ
MC47
FGGI
C918
G880
YD01
YJ01
YW01
ZA01
ZB01
ZC01
ZE01
ZF01
ZG01
ZH01
ZK01
ZN01
ZP01
ZR01
ZS01
ZT01
ZU01
ZW01
ZX01
VJ01
VK01
WG01
WL01
WP01
WZ01
YA01
YB01
YC01

5320-01-040-4810 Management Control Air Force

FUNDBUDGETMMACPVC
SF9SON

5320-01-040-4810 Management Control Army

MATCAT 1MATCAT 2MATCAT 3MATCAT 4 5ARC
T2200X

5320-01-040-4810 Management Control Marine Corps

SACCECMECMICOTCPCC
15B2

5320-01-040-4810 Management Control Navy

COGSMICIRRCSMCC
9B

5320-01-040-4810 Freight

NMFCNMFC SUBUFCHMCLTLLCLWCCTCCSHCADCACCASHNMF DESC
106510X54760U576Z9ABZ

5320-01-040-4810 FLIS Packaging 1

PICA SICATOSICQMOPCLNG DRYINGPRES MATWRAP MATPKG CATPKG DESIGN ACTYCUSH DUN
PAAA10100ZZ27A0ZZ

5320-01-040-4810 FLIS Packaging 2

THKUNIT CONTPKG DATA SOURCEINTER CONTUCLSPC MKGLVL ALVL BLVL C
CA1P00EQ

5320-01-040-4810 FLIS Packaging 3

UNIT PACK WEIGHTUNIT PACK SIZEUNIT PACK CUBECONT NSNOPIUNPKG ITEM DIMUNPKG ITEM WEIGHTSPI DATESPI NOSPI REVSUPPL INSTR
0000.40000.007O
