5320-01-034-1886 (AF3242-4-05, HR3242-4-05, NAS9305BNS-4-05) Data

5320-01-034-1886 (5320010341886) NSN Information

PhotoNSNFSCNIINItem NameINC

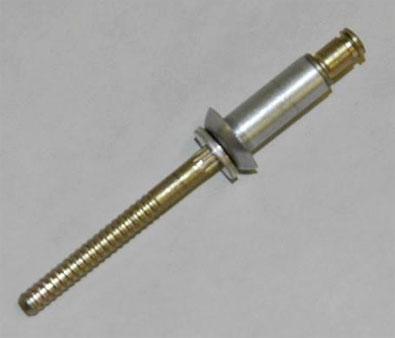

5320-01-034-1886 Photo
5320-01-034-18865320010341886Rivet, Blind00864

5320-01-034-1886 Features

MRCParameterCharacteristics
AASBFastener Length0.393 inches minimum and 0.413 inches maximum
AASKHead StyleFlush (flat) countersunk (included angle - less than 135 deg W or W/O chamfer)
AAZEShank Diameter0.140 inches minimum and 0.143 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.211 inches minimum
ABAFExpansion DeviceSerrated stem-type W
AGAVEnd Item IdentificationAircraft, delta dart F-106; aircraft, phantom F-4; aircraft, galaxy C-5; aircraft, F-111; aircraft, AC-130H, MC-130H, EC-130E, HC-130); aircraft, starlifter C-141; helicopter, super jolly H-53; aircraft, hercules C-130; aircraircraft, eagle F-15; helicopter, iroquois HH/UH-1
ANEEGrip Length0.251 inches minimum and 0.312 inches maximum
CRSQCountersink Angle100.0 degrees nominal
FEATSpecial FeaturesNs" letters after the material code "b" indicate no preference to lock type (may be visible or internal). rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.
MATTMaterialAluminum alloy 5056 body
MATTMaterialSteel comp 8740 stem
MDCLMaterial Document and ClassificationAms 6322 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-A-430 fed spec single material response body
SFTTSurface TreatmentCadmium stem
SFTTSurface TreatmentChromate body
STDCSurface Treatment Document and ClassificationMIL-C-5541 mil spec single treatment response body
STDCSurface Treatment Document and ClassificationQQ-P-416, ty 2, cl 3 fed spec single treatment response stem

5320-01-034-1886 Manufacturing Part Numbers (SKUs)
