5320-01-033-8642 (NAS9304BNS-4-03, MIL-R-7885/6, CR3243-4-3) Data

5320-01-033-8642 (5320010338642) NSN Information

PhotoNSNFSCNIINItem NameINC

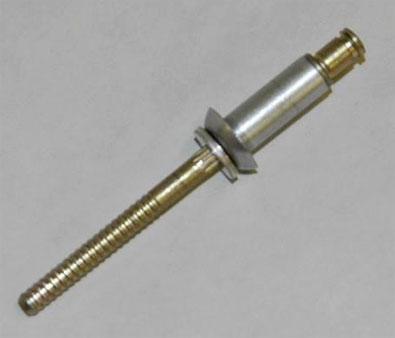

5320-01-033-8642 Photo
5320-01-033-86425320010338642Rivet, Blind00864

5320-01-033-8642 Features

MRCParameterCharacteristics
AASBFastener Length0.267 inches minimum and 0.287 inches maximum
AASKHead StyleUniversal
AASUHead Height0.054 inches minimum and 0.064 inches maximum
AAZEShank Diameter0.140 inches minimum and 0.143 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.238 inches minimum and 0.262 inches maximum
ABAFExpansion DeviceSerrated stem-type W
ANEEGrip Length0.126 inches minimum and 0.187 inches maximum
FEATSpecial Features"Ns" letters after the material code "b" indicate no preference to lock type (may be visible or internal). rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.
MATTMaterialAluminum alloy 5056 body
MATTMaterialSteel comp 8740 stem
MDCLMaterial Document and ClassificationAms 6322 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-A-430 fed spec single material response body
SFTTSurface TreatmentCadmium stem
SFTTSurface TreatmentChromate body
STDCSurface Treatment Document and ClassificationMIL-C-5541 mil spec single treatment response body
STDCSurface Treatment Document and ClassificationQQ-P-416, ty 2, cl 3 fed spec single treatment response stem

5320-01-033-8642 Manufacturing Part Numbers (SKUs)
