5320-01-033-8180 (BACR15FR6B6, HR3243-6-06, CR3243-6-6) Data

5320-01-033-8180 (5320010338180) NSN Information

PhotoNSNFSCNIINItem NameINC

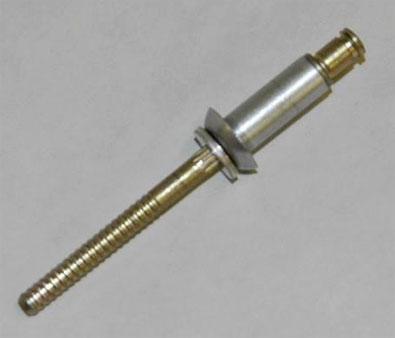

5320-01-033-8180 Photo
5320-01-033-81805320010338180Rivet, Blind00864

5320-01-033-8180 Features

MRCParameterCharacteristics
AASBFastener Length0.505 inches minimum and 0.525 inches maximum
AASKHead StyleUniversal
AASUHead Height0.080 inches minimum and 0.090 inches maximum
AAZEShank Diameter0.202 inches minimum and 0.205 inches maximum
AAZFShank StyleSelf-plugging mechanically locked stem
AAZGHead Major Diameter0.356 inches minimum and 0.394 inches maximum
ABAFExpansion DeviceSerrated stem-type W
AGAVEnd Item IdentificationHelicopter, super jolly H-53; helicopter, iroquois HH/UH-1; aircraft, thunderbolt ii, A-10; aircraft, eagle F-15; aircraft, F-111; aircraft, galaxy C-5; aircraft, phantom F-4; aircraft, hercules C-130; aircraft, AC-130H, MC-130H, EC-130E, HC-130); aircraft, delta dart F-106
ANEEGrip Length0.313 inches minimum and 0.375 inches maximum
FEATSpecial FeaturesNs" letters after the material code "b" indicate no preference to lock type (may be visible or internal). rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.
MATTMaterialAluminum alloy 5056 body
MATTMaterialSteel comp 8740 stem
MDCLMaterial Document and ClassificationAms 6322 assn std single material response stem
MDCLMaterial Document and ClassificationQQ-A-430 fed spec single material response body
SFTTSurface TreatmentCadmium stem
SFTTSurface TreatmentChromate body
STDCSurface Treatment Document and ClassificationMIL-C-5541 mil spec single treatment response body
STDCSurface Treatment Document and ClassificationQQ-P-416, ty 2, cl 3 fed spec single treatment response stem

5320-01-033-8180 Manufacturing Part Numbers (SKUs)

MFG SKUCAGESTATUSISCRNVCRNCCSADCDACHCCRNAAC
5320PL15267539009HA96 WP
AF3243-6-0653551A25 ZZ
AF3243-6-653551A95 ZZ
BACR15FR6B681205A25 KZ
CR3243-6-611815A25 KZ
CR3243-6-6F7652R95 ZF
CR3243-6-6R1120A25 ZG
HC3243-6-060HDW7A23 ZZ
HC3243-6-0617446A95 ZZ
HC3243-6-617446A95 9Z
HR3243-6-060HDW7A95 ZZ
M7885/6-6-0681349A95 KZ
MIL-R-7885/681349A95 KZ
NAS9304BNS-6-0653551A25 9Z
NAS9304BNS-6-0680205A23 ZZ
OHCP-B06-060HDW7A95 KZ
OHCP-B06-0617446A95 KZ
