5320-00-814-9990 (5320008149990) NSN Information

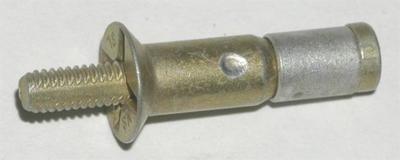

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5320-00-814-9990 | 5320 | 008149990 | Rivet, Blind | 00864 |
5320-00-814-9990 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AASK | Head Style | Flush (flat) countersunk (included angle - less than 135 deg W or W/O chamfer) |
| AAZE | Shank Diameter | 0.178 inches minimum and 0.180 inches maximum |
| AAZF | Shank Style | Threaded self-plugging shank W/sleeve |
| AAZG | Head Major Diameter | 0.325 inches minimum and 0.332 inches maximum |
| ABAF | Expansion Device | Serrated stem-type W |
| ABAJ | Lubrication | Dry film or wax |
| ANEE | Grip Length | 0.281 inches minimum and 0.344 inches maximum |
| CQBC | Minimum Tensile Strength | 180000 pounds per square inch |
| CQFM | Hardness Rating | 39.0 rockwell C minimum bolt and 43.0 rockwell C maximum bolt |
| CQFM | Hardness Rating | 39.0 rockwell C minimum nut and 43.0 rockwell C maximum nut |
| CQSX | Shear Strength | 3355 double pounds per square inch |
| CRSQ | Countersink Angle | 99.0 degrees minimum and 101.0 degrees maximum |
| HEAT | Heat Treatment | Annealed overall |
| MATT | Material | Steel comp 303F sleeve |
| MATT | Material | Steel comp 4130 body or steel comp 8740 body or steel comp 4140 body |
| MATT | Material | Steel comp 4130 stem or steel comp 8740 stem or steel comp 4140 stem |
| MDCL | Material Document and Classification | Ams 5641 assn std single material response sleeve |
| MDCL | Material Document and Classification | MIL-S-6758 mil spec 1ST material response body or MIL-S-6049 mil spec 2ND material response body or MIL-S-5626 mil spec 3RD material response body |
| MDCL | Material Document and Classification | MIL-S-6758 mil spec 1ST material response stem or MIL-S-6049 mil spec 2ND material response stem or MIL-S-5626 mil spec 3RD material response stem |
| SFTT | Surface Treatment | Cadmium bolt and chromate bolt |
| SFTT | Surface Treatment | Cadmium nut and chromate nut |
| SFTT | Surface Treatment | Cadmium sleeve and passivate sleeve |
| STDC | Surface Treatment Document and Classification | QQ-P-416, ty 2, cl 2 fed spec single treatment response bolt |
| STDC | Surface Treatment Document and Classification | QQ-P-416, ty 2, cl 2 fed spec single treatment response nut |
| STDC | Surface Treatment Document and Classification | QQ-P-416, ty 1, cl 3 fed spec 1ST treatment response sleeve and QQ-P-35 fed spec 2ND treatment response sleeve |
