5307-00-942-0428 (5307009420428) NSN Information

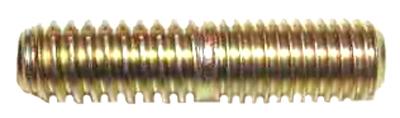

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5307-00-942-0428 | 5307 | 009420428 | Stud, Plain | 15948 |
5307-00-942-0428 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 2A nut thread |
| AAJE | Thread Pitch Diameters | +0.2713 to 0.2767 inches stud thread |
| AAJF | Thread Direction | Right-hand nut thread |
| AAJF | Thread Direction | Right-hand stud thread |
| AASA | Thread Length | 0.620 inches nominal stud thread |
| AASA | Thread Length | 0.640 inches minimum nut thread and 0.680 inches maximum nut thread |
| ABHP | Overall Length | 1.400 inches nominal |
| CMLP | Thread Quantity per Inch | 18 stud thread |
| CMLP | Thread Quantity per Inch | 24 nut thread |
| CQFM | Hardness Rating | 28.0 rockwell C minimum and 34.0 rockwell C maximum |
| CQJX | Nominal Thread Size | 0.312 inches nut thread |
| CQJX | Nominal Thread Size | 0.312 inches stud thread |
| FEAT | Special Features | L0K thread on stud end |
| MATT | Material | Steel |
| MDCL | Material Document and Classification | B50T14C, fscm 07482 mfr ref single material response |
| SFTT | Surface Treatment | Cadmium overall |
| THSD | Thread Series Designator | Unf nut thread |
| THSD | Thread Series Designator | Uns stud thread |
5307-00-942-0428 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 5000M97P10 | 07482 | A | 2 | 3 | 9Z |
5307-00-942-0428 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 5000M97P10 | 07482 | General Electric Company | A | A |
5307-00-942-0428 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 17-DEC-1965 | N | 15948 |
5307-00-942-0428 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N |
5307-00-942-0428 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| ZG01 | ||
| ZR01 | ||
| ZU01 | ||
| ZW01 |
5307-00-942-0428 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093486 | Z | 48950 | W | 573 | Z | 9 | A | BZ |
5307-00-942-0428 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | AAA | 10 | 1 | 00 | XX | 27A0 | XX |
5307-00-942-0428 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| X | D3 | P | 00 | E | Q |
5307-00-942-0428 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.0 | 0000.000 | O |
