5307-00-913-5418 (5307009135418) NSN Information

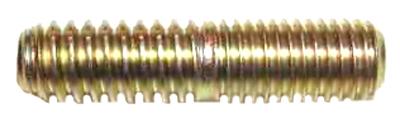

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5307-00-913-5418 | 5307 | 009135418 | Stud, Plain | 15948 |
5307-00-913-5418 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 3A nut thread |
| AAJE | Thread Pitch Diameters | +0.3284 to 0.3343 inches stud thread |
| AAJF | Thread Direction | Right-hand nut thread |
| AAJF | Thread Direction | Right-hand stud thread |
| AASA | Thread Length | 0.730 inches minimum stud thread and 0.750 inches maximum stud thread |
| AASA | Thread Length | 0.940 inches minimum nut thread and 0.960 inches maximum nut thread |
| ABHP | Overall Length | 1.420 inches minimum and 1.440 inches maximum |
| CMLP | Thread Quantity per Inch | 16 stud thread |
| CMLP | Thread Quantity per Inch | 24 nut thread |
| CQJX | Nominal Thread Size | 0.375 inches nut thread |
| CQJX | Nominal Thread Size | 0.375 inches stud thread |
| MATT | Material | Steel |
| MDCL | Material Document and Classification | B5017B fscm 59650 mfr ref single material response |
| SFTT | Surface Treatment | Cadmium overall |
| THSD | Thread Series Designator | Unf nut thread |
| THSD | Thread Series Designator | Uns stud thread |
5307-00-913-5418 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 5000M97P89 | 07482 | A | 2 | 3 | SE | ||||
| 5000M97P89 | 24446 | A | 9 | 5 | XX | ||||
| 5307PL0854716 | 9009H | A | 9 | 6 | WP |
5307-00-913-5418 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 5000M97P89 | 24446 | General Electric Co. | A | A | |
| 5000M97P89 | 07482 | General Electric Company | A | A | |
| 5307PL0854716 | 9009H | Inspektorat Wsparcia SIL Zbrojnych | H | A |
5307-00-913-5418 Replaces the Following Cancelled NSN
| Cancelled NSN | Cancelled NIIN |
|---|---|
| 5307-00-736-3490 | 007363490 |
| 5307-00-944-2883 | 009442883 |
5307-00-913-5418 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 01-JAN-1960 | N | 7318155000 | 15948 |
5307-00-913-5418 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DS | N | ------- | I | ||
| DF | N | SF9SX-V | F | ||
| DN | 9B----- | N |
5307-00-913-5418 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
5307-00-913-5418 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DF | SMS | J | 1 | EA | 0 | U | N | SF9SX-V | F |
| DF | SMS | J | 1 | EA | 0 | U | N | SF9SX-V | I |
| DF | SMS | J | 1 | EA | 0 | U | N | SF9SX-V | N |
| DN | SMS | J | 1 | EA | 0 | U | 9B----- | F | |
| DN | SMS | J | 1 | EA | 0 | U | 9B----- | I | |
| DN | SMS | J | 1 | EA | 0 | U | 9B----- | N | |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | F |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | I |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | N |
5307-00-913-5418 Component / End Item
| WPN SYS ID | WPN SYS SVC | WEAPON SYSTEM |
|---|---|---|
| 96 | N | Engine, Marine gas Turbine LM-2500 |
| B2 | N | Littoral Combat Ship, Flight 0 |
| EZ | N | Ticonderoga Class Cg (47) |
| FP | N | Ship, Supply Class Taoe |
| JD | N | Arleigh Burke Class Ddg |
| JF | N | Oliver Perry Class (FFG-7) |
| YR | N | Fms - Build Frigates Class Ships |
5307-00-913-5418 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| N9BZ | ||
| FXGI | ||
| ZA01 | ||
| ZC01 | ||
| ZG01 | ||
| ZH01 | ||
| ZU01 | ||
| ZW01 | ||
| WP01 | ||
| YB01 | ||
| YD01 |
5307-00-913-5418 Management Control Air Force
| FUND | BUDGET | MMAC | PVC |
|---|---|---|---|
| SF | 9 | SX | V |
5307-00-913-5418 Management Control Navy
| COG | SMIC | IRRC | SMCC |
|---|---|---|---|
| 9B |
5307-00-913-5418 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093486 | Z | 48950 | W | 573 | Z | 9 | A | BZ |
5307-00-913-5418 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | AAA | 10 | 1 | 00 | 00 | 27A0 | 00 |
5307-00-913-5418 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| 0 | D3 | P | 00 | E | Q |
5307-00-913-5418 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.1 | 0000.007 | O |
