5307-00-698-4400 (5307006984400) NSN Information

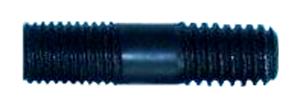

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5307-00-698-4400 | 5307 | 006984400 | Stud, Plain | 15948 |
5307-00-698-4400 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 3A nut thread |
| AAJE | Thread Pitch Diameters | +0.3385 to 0.3405 inches stud thread |
| AAJF | Thread Direction | Right-hand nut thread |
| AAJF | Thread Direction | Right-hand stud thread |
| AASA | Thread Length | 0.562 inches maximum stud thread |
| AASA | Thread Length | 0.641 inches maximum nut thread |
| ABHP | Overall Length | 1.375 inches nominal |
| CMLP | Thread Quantity per Inch | 16 stud thread |
| CMLP | Thread Quantity per Inch | 24 nut thread |
| CQJX | Nominal Thread Size | 0.375 inches nut thread |
| CQJX | Nominal Thread Size | 0.375 inches stud thread |
| FEAT | Special Features | First end 45.0 deg chamfer to root of threads, nut end 0.375 in. sperical radius |
| MATT | Material | Steel comp 1035 |
| THSD | Thread Series Designator | Unc stud thread |
| THSD | Thread Series Designator | Unf nut thread |
5307-00-698-4400 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 7966647 | 19207 | A | 2 | 3 | XX | ||||
| 810906 | 24617 | A | 2 | 3 | XX |
5307-00-698-4400 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 810906 | 24617 | General Motors Corp. | A | A | |
| 7966647 | 19207 | U S Army Tank Automotive Command | H | A |
5307-00-698-4400 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| A | X | A | 1 | 01-JAN-1963 | N | 15948 |
5307-00-698-4400 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N |
5307-00-698-4400 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| YB01 |
5307-00-698-4400 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093486 | Z | 48950 | W | 573 | Z | 9 | A | BZ |
5307-00-698-4400 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | AAA | 42 | 1 | XX | XX | 27A0 | XX |
5307-00-698-4400 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| X | XX | P | 00 | E | Q |
5307-00-698-4400 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.0 | 0000.000 | M |
