5307-00-521-4921 (5307005214921) NSN Information

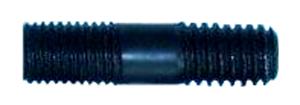

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5307-00-521-4921 | 5307 | 005214921 | Stud, Plain | 15948 |
5307-00-521-4921 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJE | Thread Pitch Diameters | +0.3911 to 0.3941 inches stud thread |
| AAJE | Thread Pitch Diameters | +0.4021/+0.4061 inches nut thread |
| AAJF | Thread Direction | Right-hand nut thread |
| AAJF | Thread Direction | Right-hand stud thread |
| AASA | Thread Length | 0.750 inches minimum stud thread |
| AASA | Thread Length | 0.656 inches minimum nut thread |
| ABHP | Overall Length | 2.000 inches nominal |
| CMLP | Thread Quantity per Inch | 14 stud thread |
| CMLP | Thread Quantity per Inch | 20 nut thread |
| CQFM | Hardness Rating | 23.0 rockwell C minimum and 30.0 rockwell C maximum |
| CQJX | Nominal Thread Size | 0.438 inches nut thread |
| CQJX | Nominal Thread Size | 0.438 inches stud thread |
| MATT | Material | Steel comp 3135 |
| MDCL | Material Document and Classification | Sae assn std single material response |
| THSD | Thread Series Designator | Uns nut thread |
| THSD | Thread Series Designator | Uns stud thread |
5307-00-521-4921 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 11A8714 | 95201 | A | 2 | 3 | XX | ||||
| 2015960 | 24617 | A | 9 | 5 | XX | ||||
| 2015960 | 7X677 | A | 1 | C | 9X | ZZ | |||
| 26872C | 56442 | F | 9 | 5 | KZ | ||||
| 384854 | 65282 | H | 9 | 5 | XX | ||||
| 4DG087 | 1DF03 | A | 2 | 3 | KZ | ||||
| 4DG087 | 62265 | A | 2 | 3 | XX | ||||
| 4X355 | 78500 | A | 2 | 3 | XX | ||||
| 5214921 | 19207 | A | 2 | 3 | XX | ||||
| 91277 | 65282 | H | 9 | 5 | XX |
5307-00-521-4921 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 4DG087 | 1DF03 | ABM Equipment & Supply LLC | A | A | |
| 26872C | 56442 | Diamond REO Truck Co. | A | F | |
| 2015960 | 24617 | General Motors Corp. | A | A | |
| 2015960 | 7X677 | General Motors LLC | A | A | |
| 4X355 | 78500 | Meritor Heavy Vehicle Systems LLC | A | A | |
| 11A8714 | 95201 | Napco International LLC | A | A | |
| 5214921 | 19207 | U S Army Tank Automotive Command | H | A | |
| 4DG087 | 62265 | Volvo Trucks North America Inc. | F | A | |
| 384854 | 65282 | White Motor Corp. | A | H | |
| 91277 | 65282 | White Motor Corp. | A | H |
5307-00-521-4921 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 01-JAN-1963 | N | 15948 |
5307-00-521-4921 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N |
5307-00-521-4921 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| ZU01 | ||
| WB01 | ||
| YD01 |
5307-00-521-4921 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093486 | Z | 48950 | W | U | 573 | Z | 9 | A | BZ |
