5307-00-145-4659 (5307001454659) NSN Information

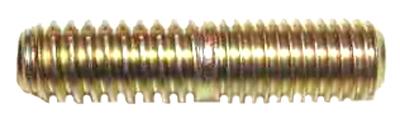

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 5307-00-145-4659 | 5307 | 001454659 | Stud, Plain | 15948 |
5307-00-145-4659 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 3A nut thread |
| AAJE | Thread Pitch Diameters | +0.2843 to 0.2869 inches stud thread |
| AAJF | Thread Direction | Right-hand nut thread |
| AAJF | Thread Direction | Right-hand stud thread |
| AASA | Thread Length | 0.812 inches minimum stud thread |
| AASA | Thread Length | 0.625 inches minimum nut thread |
| ABHP | Overall Length | 1.812 inches nominal |
| CMLP | Thread Quantity per Inch | 18 stud thread |
| CMLP | Thread Quantity per Inch | 24 nut thread |
| CQJX | Nominal Thread Size | 0.312 inches nut thread |
| CQJX | Nominal Thread Size | 0.312 inches stud thread |
| MATT | Material | Steel comp 8740 |
| MDCL | Material Document and Classification | Ams 6322 assn std single material response |
| SFTT | Surface Treatment | Cadmium overall |
| THSD | Thread Series Designator | Unf nut thread |
| THSD | Thread Series Designator | Uns stud thread |
5307-00-145-4659 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 77655P004 | 00198 | A | 2 | 5 | KZ | ||||
| 77655P004 | 77445 | A | 9 | 5 | KZ | ||||
| 77655P4 | 77445 | A | 2 | 3 | XX | ||||
| AS77655P4 | 00198 | A | 2 | 5 | KZ | ||||
| AS77655P4 | 77445 | A | 9 | 5 | KZ |
5307-00-145-4659 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 77655P004 | 00198 | Pratt and Whitney Canada Inc. | E | A | |
| AS77655P4 | 00198 | Pratt and Whitney Canada Inc. | E | A | |
| 77655P004 | 77445 | United Technologies Corporation | F | A | |
| 77655P4 | 77445 | United Technologies Corporation | F | A | |
| AS77655P4 | 77445 | United Technologies Corporation | F | A |
5307-00-145-4659 Replaces the Following Cancelled NSN
| Cancelled NSN | Cancelled NIIN |
|---|---|
| 5307-00-533-8632 | 005338632 |
5307-00-145-4659 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 01-JAN-1963 | N | 15948 |
5307-00-145-4659 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DS | ------- | I | V | DISCONTINUED WITHOUT REPLACEMENT |
5307-00-145-4659 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
5307-00-145-4659 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DS | SMS | Y | H | EA | 0 | U | ------- | I |
5307-00-145-4659 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| ZH01 | ||
| YB01 |
5307-00-145-4659 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093486 | Z | 48950 | W | 573 | Z | 9 | A | BZ |
5307-00-145-4659 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | AAA | 10 | 1 | 00 | XX | 27A0 | XX |
5307-00-145-4659 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| X | D3 | P | 00 | E | Q |
5307-00-145-4659 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.0 | 0000.000 | O |
