5307-00-104-7998 (5307001047998) NSN Information
| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|

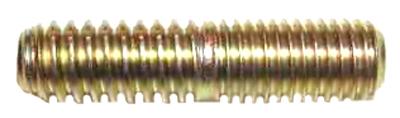

 | 5307-00-104-7998 | 5307 | 001047998 | Stud, Plain | 15948 |
5307-00-104-7998 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 1A stud thread |
| AAJD | Thread Class | 3A nut thread |
| AAJF | Thread Direction | Right-hand nut thread |
| AAJF | Thread Direction | Right-hand stud thread |
| AASA | Thread Length | 0.490 inches minimum stud thread |
| AASA | Thread Length | 0.500 inches minimum nut thread |
| ABHP | Overall Length | 1.178 inches minimum and 1.198 inches maximum |
| CMLP | Thread Quantity per Inch | 20 stud thread |
| CMLP | Thread Quantity per Inch | 28 nut thread |
| CQJX | Nominal Thread Size | 0.250 inches nut thread |
| CQJX | Nominal Thread Size | 0.250 inches stud thread |
| MATT | Material | Steel |
| MDCL | Material Document and Classification | Ams 5731 assn std single material response |
| THSD | Thread Series Designator | Unc stud thread |
| THSD | Thread Series Designator | Unjf nut thread |
5307-00-104-7998 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| J110P02 | 07482 | A | 2 | 3 | SE |
5307-00-104-7998 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| J110P02 | 07482 | General Electric Company | A | A |
5307-00-104-7998 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | X | A | 1 | 01-JUL-1968 | N | 15948 |
5307-00-104-7998 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DS | N | ------- | I | ||
| DF | N | SF9NY-N | F |
5307-00-104-7998 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
5307-00-104-7998 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DF | SMS | J | 1 | EA | 0 | U | N | SF9NY-N | F |
| DF | SMS | J | 1 | EA | 0 | U | N | SF9NY-N | I |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | F |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | I |
5307-00-104-7998 Component / End Item
| WPN SYS ID | WPN SYS SVC | WEAPON SYSTEM |
|---|---|---|
| BR | F | Engine, Aircraft, TF39-GE-1 (C-5A) |
5307-00-104-7998 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| FXGI |
5307-00-104-7998 Management Control Air Force
| FUND | BUDGET | MMAC | PVC |
|---|---|---|---|
| SF | 9 | NY | N |
5307-00-104-7998 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093486 | Z | 48950 | W | 575 | Z | 9 | A | BZ |
5307-00-104-7998 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | AAA | 10 | 1 | 00 | 00 | 27A0 | 00 |
5307-00-104-7998 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| 0 | D3 | P | 00 | E | Q |
5307-00-104-7998 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.0 | 0000.000 | O |
