4730-00-001-0008 (AC1034C08, D10008-8, LD83023-8) Data

4730-00-001-0008 (4730000010008) NSN Information

PhotoNSNFSCNIINItem NameINC

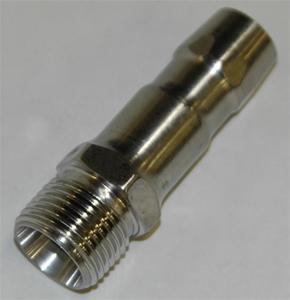

4730-00-001-0008 Photo
4730-00-001-00084730000010008Coupling, Tube06078

4730-00-001-0008 Features

MRCParameterCharacteristics
AAJDThread Class3A 2ND end
AEHZMaximum Operating Temp275.0 deg fahrenheit single response
AGAVEnd Item IdentificationLanding craft air cushion
AHNCConnection StyleFlareless (tube) 2ND end
AHNCConnection StyleSwaged W/ grooves (tube) 1ST end
AWLSConnection TypeThreaded external tube 2ND end
AWLSConnection TypeUnthreaded internal tube 1ST end
CQGMMaximum Operating Pressure3000.0 pounds per square inch single response
CQJXNominal Thread Size0.750 inches 2ND end
CQRBSeat Angle12.0 degrees 2ND end
CWFDNominal Outside Diameter Tube Accommodated0.500 inches all ends
CWFRNominal Overall Length2.332 inches
FEATSpecial FeaturesThe internal surface of the permaswage end, will be polytetrafloroetnylene coated, per deutsch co, spec no. DMCPS1009, to 0.410 in. min. 0.435 in. max, into the fitting bore
MATTMaterialSteel comp XM-10 overall or steel overall
MDCLMaterial Document and ClassificationAms 5656 assn std single material response overall
MEDAMedia for Which DesignedHydraulic fluid single response
SFTTSurface TreatmentPassivate overall
STDCSurface Treatment Document and ClassificationDeutsch co.spec NO.DMCPS1009 mfr ref 1ST treatment response inside
STDCSurface Treatment Document and ClassificationMIL-F-14072, E300, ty 2 mil spec single treatment response outside
STYLStyle DesignatorSwaged and threaded external
THSDThread Series DesignatorUnjf 2ND end
