3110-01-170-5583 (3110011705583) NSN Information
Photo | NSN | FSC | NIIN | Item Name | INC |
---|---|---|---|---|---|

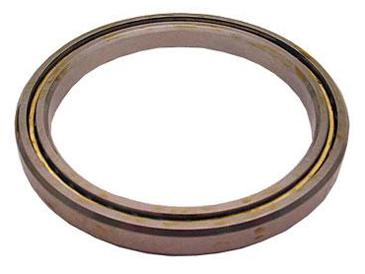

3110-01-170-5583 | 3110 | 011705583 | Bearing, Ball, Annular | 00014 |
3110-01-170-5583 Features
MRC | Parameter | Characteristics |
---|---|---|
ABMK | Overall Width | 0.2500 inches nominal |
ABXV | Bore Diameter | 2.5000 inches nominal |
ADGA | Overall Outside Diameter | 3.1250 inches nominal |
AGAV | End Item Identification | Air route surveillance radar 3, ARSR3 |
AGYE | Surface Finish | Ground |
AGYF | Retainer Fabrication Method | Pressed |
AGYK | Shield Quantity | 2 |
AGZC | Load Direction | Radial |
AGZD | Bore Shape | Straight |
AGZH | Internal Fit-up Designation | Standard |
AGZK | Internal Fit-up Contact Angular Direction | Primarily radial |
CTFZ | Standard Tolerance Designation | Abec NO.5 |
LBMA | Lubrication Material | Grease |
LMDC | Lubrication Material Document and Classification | MIL-G-23827 mil spec single material response |
MATT | Material | Steel comp 440C overall |
STYL | Style Designator | Non-loading groove, non-separable |
3110-01-170-5583 Manufacturing Part Numbers (SKUs)
MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
---|---|---|---|---|---|---|---|---|---|
KB025AR0 | 32828 | A | 2 | 3 | 48 |
3110-01-170-5583 Manufacturer
MFG SKU | CAGE | Manufacturer | Type | Status | Role |
---|---|---|---|---|---|
KB025AR0 | 32828 | Kaydon Corporation | A | A |
3110-01-170-5583 FLIS Identification
PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
---|---|---|---|---|---|---|---|---|---|---|
U | N | A | 27-JAN-1984 | N | 8482105028 | 00014 |
3110-01-170-5583 FLIS Management
MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
---|---|---|---|---|---|
GE | ------- | I |
3110-01-170-5583 Demilitarization Codes & Management
DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
---|---|---|---|---|---|
A | N | N |
3110-01-170-5583 Miscellaneous Management
MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
---|---|---|---|---|---|---|---|---|---|
GE | G69 | G | 1 | EA | 0 | U | ------- | I |
3110-01-170-5583 Non-consumable Item Support
MOE RULE | NIMSC | DSOR |
---|---|---|
B481 |
3110-01-170-5583 Freight
NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
---|---|---|---|---|---|---|---|---|---|---|---|---|
