3110-01-104-3953 (3110011043953) NSN Information
| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|

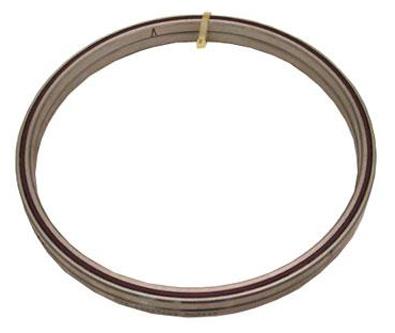

 | 3110-01-104-3953 | 3110 | 011043953 | Bearing, Ball, Annular | 00014 |
3110-01-104-3953 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABMK | Overall Width | 0.3125 inches nominal |
| ABXV | Bore Diameter | 6.5000 inches nominal |
| ADGA | Overall Outside Diameter | 7.1250 inches nominal |
| AGYE | Surface Finish | Ground |
| AGYF | Retainer Fabrication Method | Pressed |
| AGZC | Load Direction | Angular |
| AGZD | Bore Shape | Straight |
| CTFZ | Standard Tolerance Designation | Afbma class 1 |
| MATT | Material | Plastic polyester separator |
| MATT | Material | Steel comp E52100 ball |
| MATT | Material | Steel comp E52100 inner ring |
| MATT | Material | Steel comp E52100 outer ring |
| MATT | Material | Steel comp E52100 retainer |
| STYL | Style Designator | Non-loading groove, non-separable |
3110-01-104-3953 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| KB065BH0K | 32828 | A | 2 | 5 | 48 | ||||
| KB065BH0K7K4 | 32828 | A | 2 | 3 | 48 |
3110-01-104-3953 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| KB065BH0K | 32828 | Kaydon Corporation | A | A | |
| KB065BH0K7K4 | 32828 | Kaydon Corporation | A | A |
3110-01-104-3953 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| U | N | A | 03-DEC-1980 | N | 8482105028 | 00014 |
3110-01-104-3953 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DF | N | SF9---N | F | ||
| GE | ------- | I |
3110-01-104-3953 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | N |
3110-01-104-3953 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DF | G69 | G | 1 | PR | 0 | U | N | SF9---N | F |
| DF | G69 | G | 1 | PR | 0 | U | N | SF9---N | I |
| GE | G69 | G | 1 | PR | 0 | U | ------- | F | |
| GE | G69 | G | 1 | PR | 0 | U | ------- | I |
3110-01-104-3953 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| FX48 | ||
| B481 |
3110-01-104-3953 Management Control Air Force
| FUND | BUDGET | MMAC | PVC |
|---|---|---|---|
| SF | 9 | N |
3110-01-104-3953 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
