3110-01-056-0205 (3110010560205) NSN Information

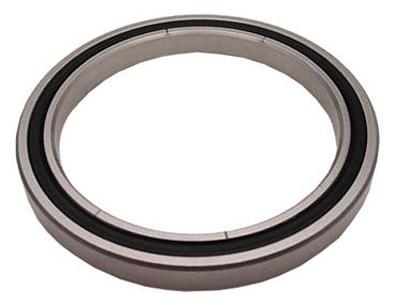

| Photo | NSN | FSC | NIIN | Item Name | INC |
|---|---|---|---|---|---|
 | 3110-01-056-0205 | 3110 | 010560205 | Bearing, Ball, Annular | 00014 |
3110-01-056-0205 Features
| MRC | Parameter | Characteristics |
|---|---|---|
| ABMK | Overall Width | 0.2450 inches minimum and 0.2500 inches maximum |
| ABXV | Bore Diameter | 2.0622 inches minimum and 2.0626 inches maximum |
| ADGA | Overall Outside Diameter | 2.6246 inches minimum and 2.6250 inches maximum |
| ADZG | Unable to Decode | Unable to decode |
| AGYE | Surface Finish | Ground |
| AGYF | Retainer Fabrication Method | Machined |
| AGYK | Shield Quantity | 2 |
| AGZC | Load Direction | Radial |
| AGZD | Bore Shape | Straight |
| AKVV | Internal Clearance | 0.0005 inches minimum radial and 0.0015 inches maximum radial |
| FEAT | Special Features | 1/3 to 1/2 full of specified lubricant |
| LBMA | Lubrication Material | Grease |
| LMDC | Lubrication Material Document and Classification | MIL-G-81322 mil spec single material response |
| MATT | Material | Plastic phenolic retainer |
| MATT | Material | Rubber butadiene-acrylonitrile class nbr shield |
| MATT | Material | Steel comp 440A ball |
| MATT | Material | Steel comp 440A inner ring |
| MATT | Material | Steel comp 440A outer ring |
| MDCL | Material Document and Classification | Aisi assn std single material response ball |
| MDCL | Material Document and Classification | Aisi assn std single material response inner ring |
| MDCL | Material Document and Classification | Aisi assn std single material response outer ring |
| STYL | Style Designator | Non-loading groove, non-separable |
3110-01-056-0205 Manufacturing Part Numbers (SKUs)
| MFG SKU | CAGE | STATUS | ISC | RNVC | RNCC | SADC | DAC | HCC | RNAAC |
|---|---|---|---|---|---|---|---|---|---|
| 3TKRDD33-42ULY-231 | 78118 | A | 2 | 3 | KZ | ||||
| 801792-8 | 96214 | A | 2 | 7 | KZ |
3110-01-056-0205 Manufacturer
| MFG SKU | CAGE | Manufacturer | Type | Status | Role |
|---|---|---|---|---|---|
| 801792-8 | 96214 | Raytheon Company | A | A | |
| 3TKRDD33-42ULY-231 | 78118 | Timken Aerospace & Super Precision | A | A |
3110-01-056-0205 FLIS Identification
| PMIC | ADPE CODE | CRITL CODE | DEMIL CODE | DEMIL INTG | NIIN ASGMT | ESD | HMIC | ENAC | SCHEDULE_B | INC |
|---|---|---|---|---|---|---|---|---|---|---|
| A | X | A | 15-FEB-1978 | N | 8482105028 | 00014 |
3110-01-056-0205 FLIS Management
| MOE | REC REP CODE | MGMT CTL | USC | PHRASE CODE | PHRASE STATEMENT |
|---|---|---|---|---|---|
| DS | N | ------- | I | ||
| DF | N | SF9---V | F |
3110-01-056-0205 Demilitarization Codes & Management
| DML | PMIC | HMIC | ADPEC | Criticality | ESDC |
|---|---|---|---|---|---|
| A | N | X |
3110-01-056-0205 Miscellaneous Management
| MOE (S_A) | SOS | AAC | QUP | UI | SLC | CIIC | RC | MCC | SVC |
|---|---|---|---|---|---|---|---|---|---|
| DF | SMS | J | 1 | EA | 0 | U | N | SF9---V | F |
| DF | SMS | J | 1 | EA | 0 | U | N | SF9---V | I |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | F |
| DS | SMS | J | 1 | EA | 0 | U | N | ------- | I |
3110-01-056-0205 Non-consumable Item Support
| MOE RULE | NIMSC | DSOR |
|---|---|---|
| FGGG | ||
| BGX1 | ||
| ZT01 |
3110-01-056-0205 Management Control Air Force
| FUND | BUDGET | MMAC | PVC |
|---|---|---|---|
| SF | 9 | V |
3110-01-056-0205 Freight
| NMFC | NMFC SUB | UFC | HMC | LTL | LCL | WCC | TCC | SHC | ADC | ACC | ASH | NMF DESC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 114820 | X | 58860 | P | 742 | Z | 9 | A | VZ |
3110-01-056-0205 FLIS Packaging 1
| PICA SICA | TOS | ICQ | MOP | CLNG DRYING | PRES MAT | WRAP MAT | PKG CAT | PKG DESIGN ACTY | CUSH DUN |
|---|---|---|---|---|---|---|---|---|---|
| P | 0 | ZZ | 1 | ZZ | ZZ | 03AZ | ZZ |
3110-01-056-0205 FLIS Packaging 2
| THK | UNIT CONT | PKG DATA SOURCE | INTER CONT | UCL | SPC MKG | LVL A | LVL B | LVL C |
|---|---|---|---|---|---|---|---|---|
| C | ZZ | P | ZZ | E | Q |
3110-01-056-0205 FLIS Packaging 3
| UNIT PACK WEIGHT | UNIT PACK SIZE | UNIT PACK CUBE | CONT NSN | OPI | UNPKG ITEM DIM | UNPKG ITEM WEIGHT | SPI DATE | SPI NO | SPI REV | SUPPL INSTR |
|---|---|---|---|---|---|---|---|---|---|---|
| 0000.1 | 0000.007 | M |
